Chapter 5 Media Load
Tear-Off, cont.

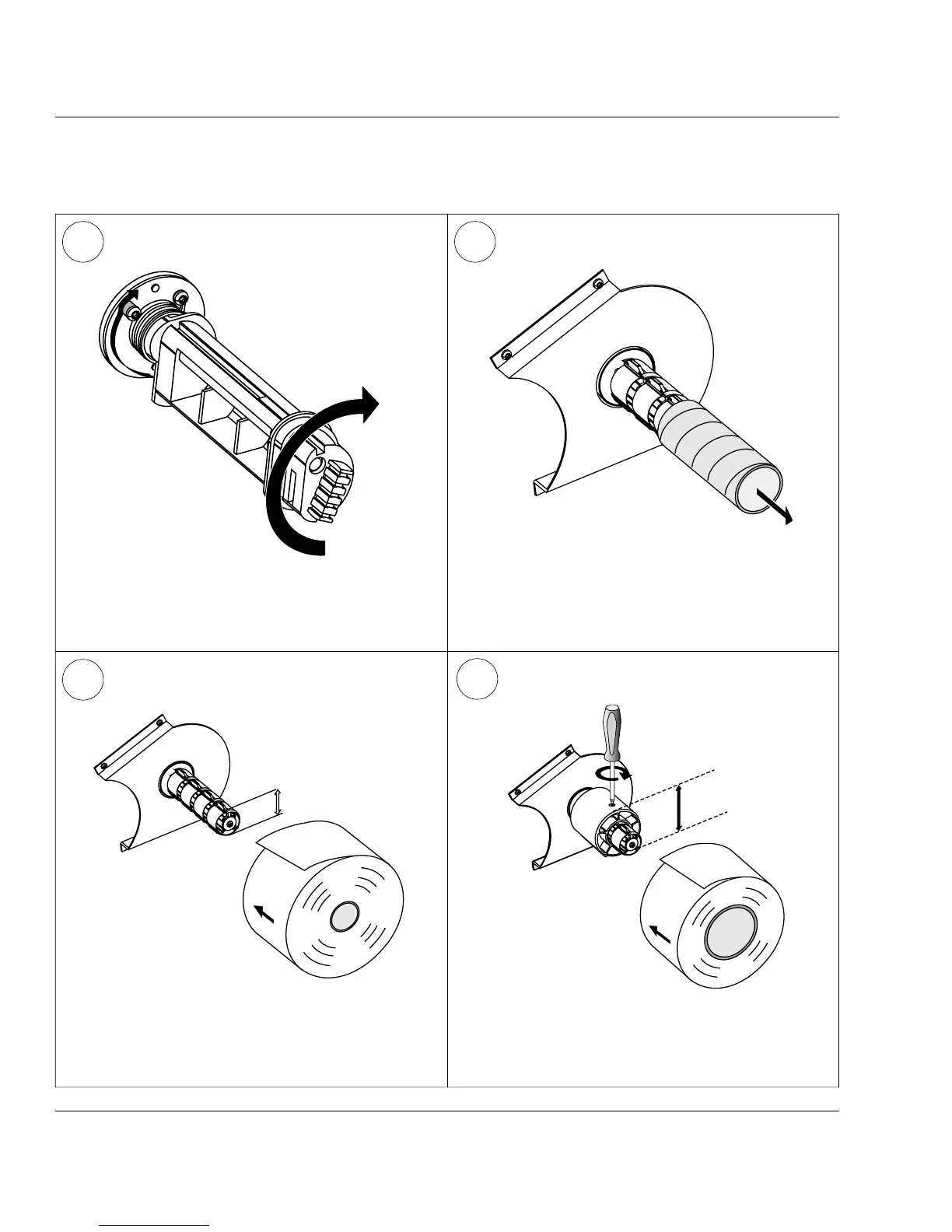

Remove any empty core from the media
supply hub.
Fit a new roll of media on the supply hub and
push the roll inwards as far as it will go.
43
In case of a media roll with a 76.2 mm (3
inches) core, fi rst fi t the adapter on the media
supply hub.
38-40 mm
(1.5 in)
5a
5b
Turn the label slack absorber clockwise so it
snap-locks in open position.
76 mm
(3 in)
