Intermec EasyCoder 501 E – Installation & Operation Ed. 1 37
Chapter 5 Media Load
Peel-Off, cont.
3

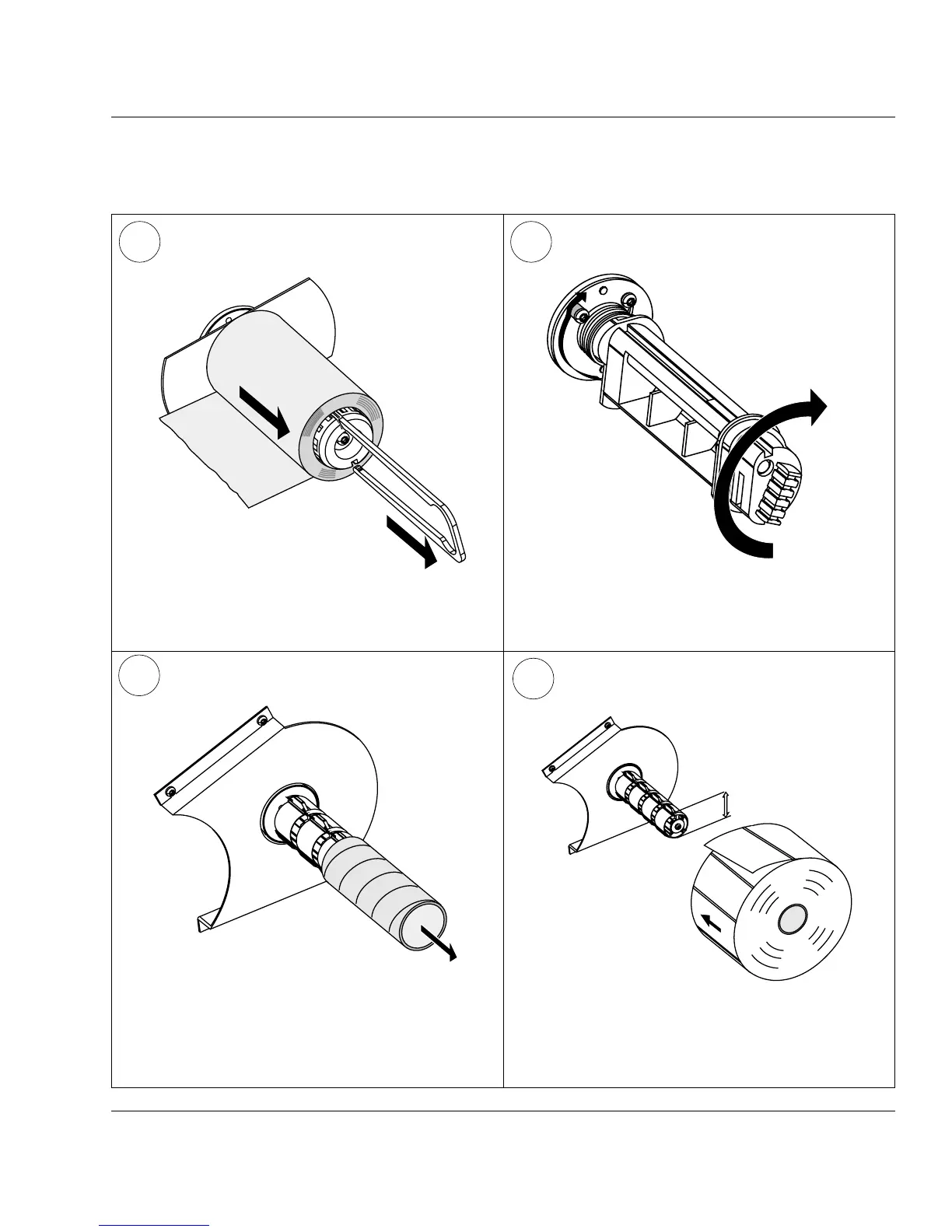

Pull out the green clip (1) on the liner takeup
hub and dispose of all wound-up liner (2).
4
6a
Fit a new roll of labels on the supply hub and
push the roll inwards as far as it will go.
38-40 mm
(1.5 in)
1.
2.
5
Remove any empty core from the media
supply hub.
Turn the label slack absorber clockwise so it
snap-locks in open position.
To Next Page
