Intermec EasyCoder 501 E – Installation & Operation Ed. 138
Chapter 5 Media Load
Peel-Off, cont.

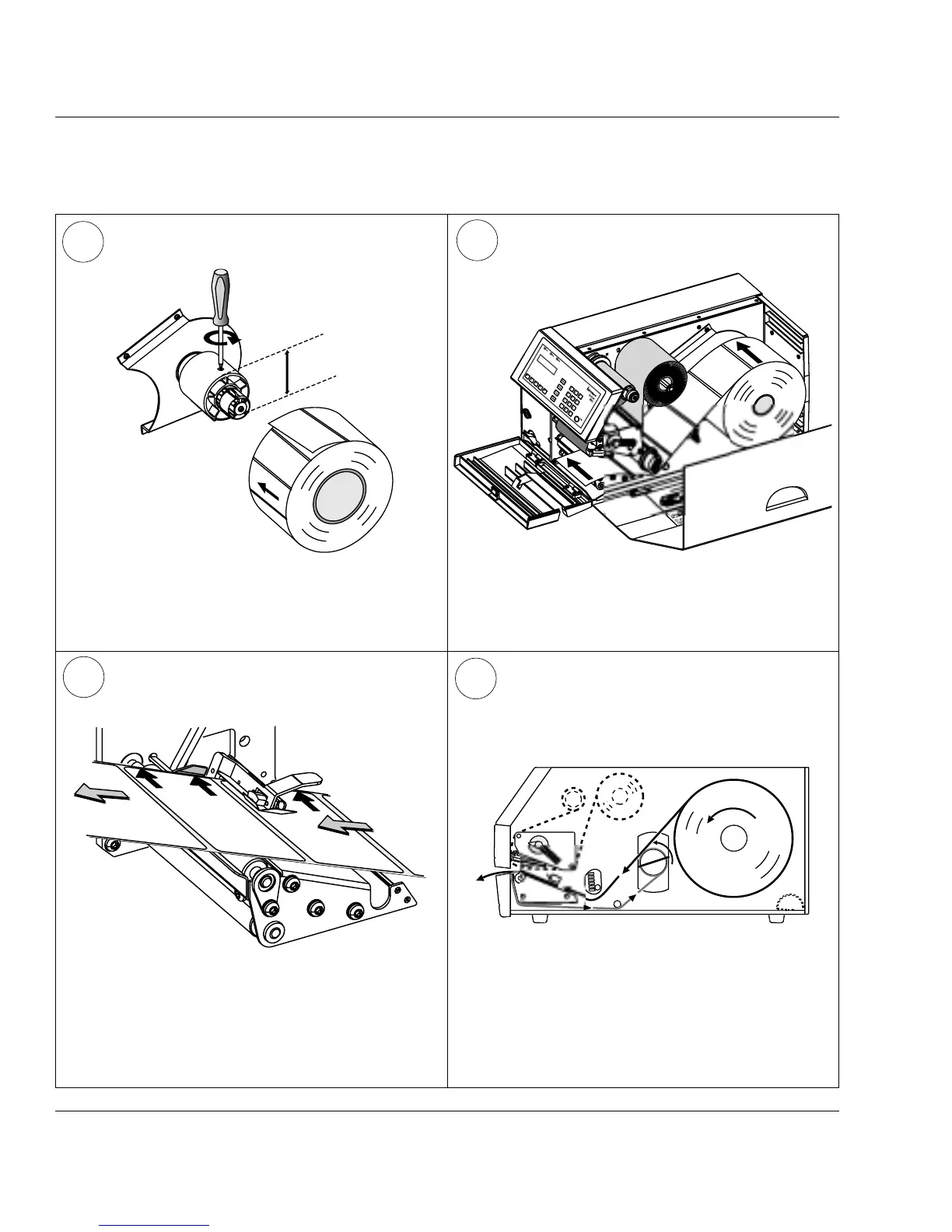

Route the media under the guide plate of the
label stop sensor and push it inwards towards
the center section as far as it will go.
This diagram shows the path of the labels and
the liner.
8
9
6b
In case of a label roll with a 76.2 mm (3
inches) core, fi rst fi t the adapter on the media
supply hub.
76 mm
(3 in)
7
Pull out the media and route it under the slack
absorber and through the print unit as illus-
trated. Then push the roll inward on the hub.
L
o
L
