Intermec EasyCoder 501 E – Installation & Operation Ed. 1 49
Chapter 6 Thermal Transfer Printing

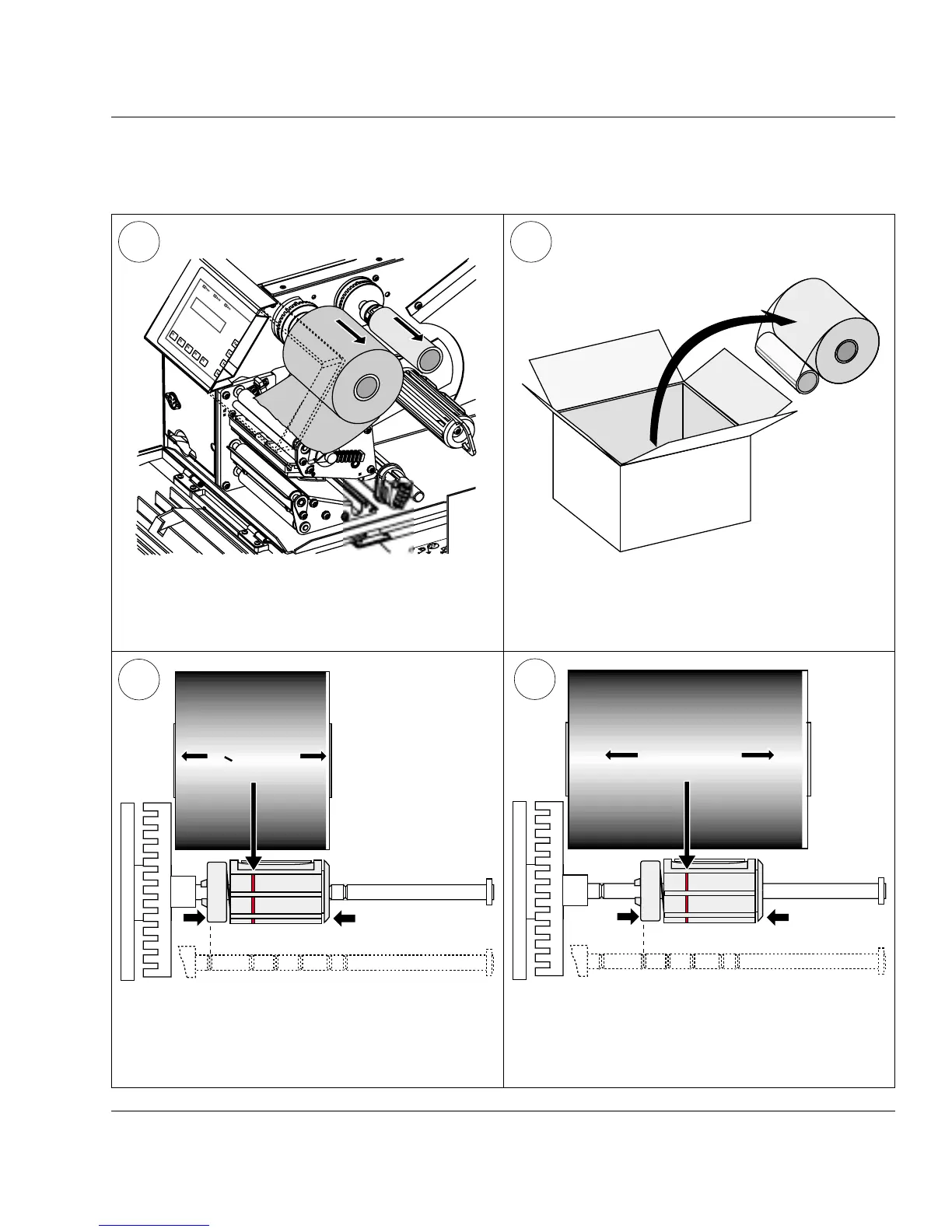

Ribbon Load, cont.
Unpack a roll of original Intermec thermal
transfer ribbon.
In case of ribbon up to 60 mm (2.2 in.) wide,
compress the ribbon supply bobbin and move it
so it snaps into the fi rst (innermost) grove.
In case of 88 to 90 mm (3.5 in.) ribbon width,
compress the ribbon supply bobbin and move it
so it snaps into the second grove.
3 4
5a
In case of ribbon reload, remove any used
ribbon and empty ribbon core.
TEAR-OFF
5b
<60 mm
(2.3 in)
#1
88–90 mm
(3.5 in)
#2
