Chapter 6 Thermal Transfer Printing

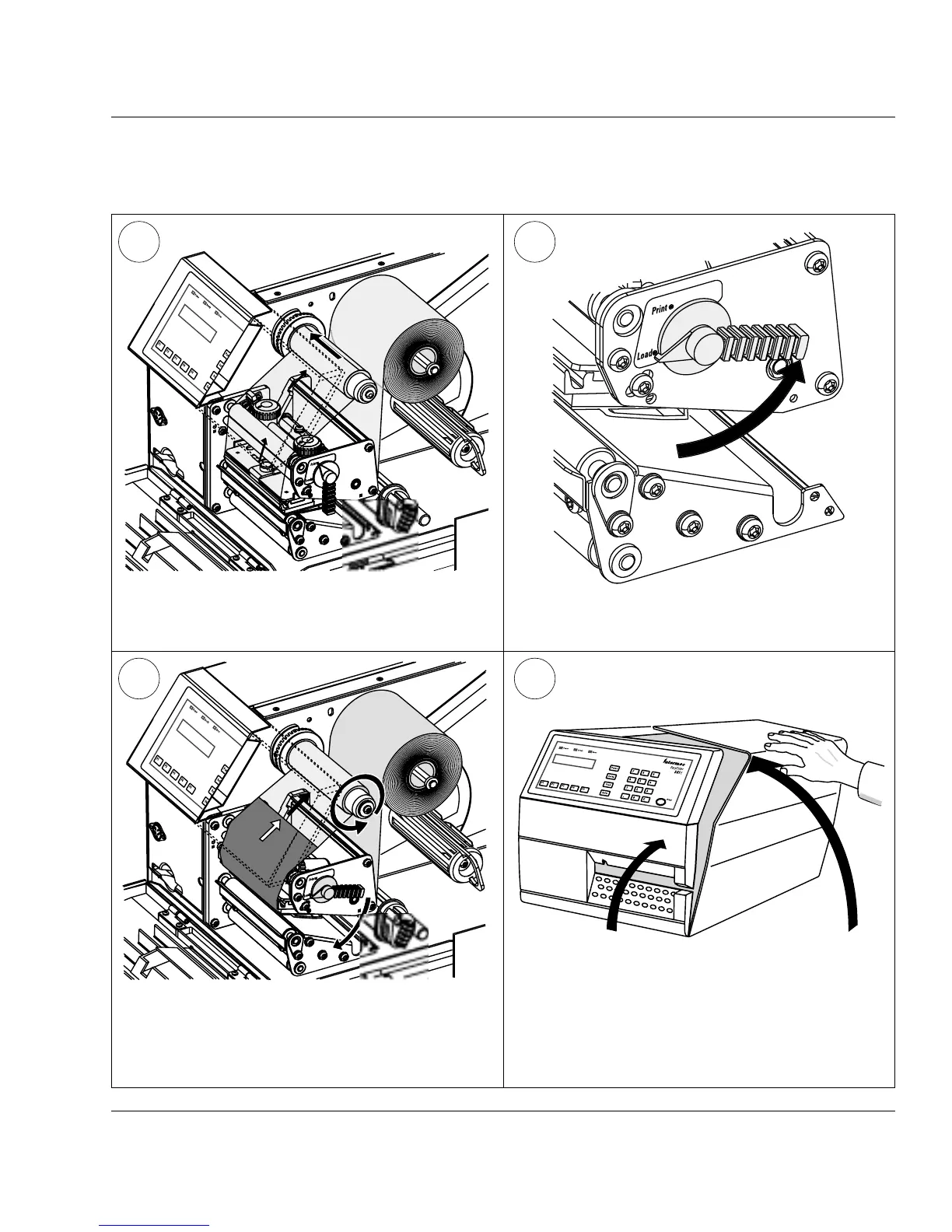

Ribbon Load, cont.
Press the cardboard core at the front end of the
ribbon onto the rewind hub.
Turn the printhead lift lever to “Load” posi-
tion.
Close the front and side doors.
10
11 12
Wind up the ribbon until all of the transparent
leader has passed the printhead and the ribbon
becomes tight. Then turn the printhead lift
lever to “Print position”.
