Intermec EasyCoder PF4i User Manual

Chapter 9 — Maintenance
EasyCoder PF4i User’s Guide (IPL Version) 87
10 Allow the cleaned parts to dry completely before loading any
media or ribbon.
External Cleaning
To clean the exterior of the printer

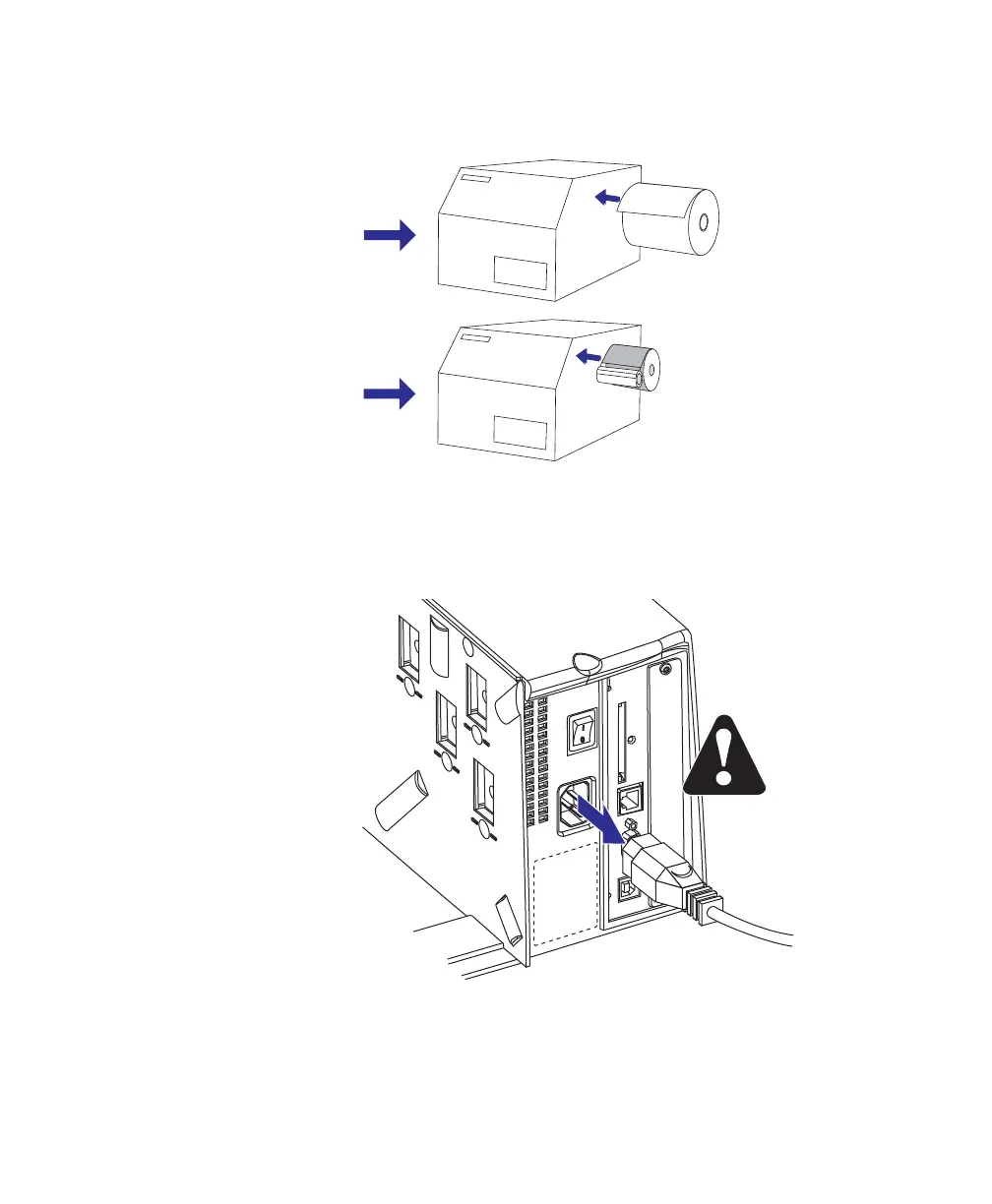

1 Always remove the power cord before cleaning!

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
