Intermec EasyCoder PF4i User Manual

Chapter B — Media Specifications
EasyCoder PF4i User’s Guide (IPL Version) 111
The recommended media thickness is 175μm (7 mils) with the
standard printhead or 220μm (8.7 mils) with the special thick
media printhead. If thicker media is used, print quality may be
reduced. Media stiffness must be balanced against thickness to
maintain print quality. Media rolls to be loaded inside the printer
should be wound with the printable side facing outwards.
The media supply must not be exposed to dust, sand, or grit. Any
hard particles, however small, can damage the printhead.
Media

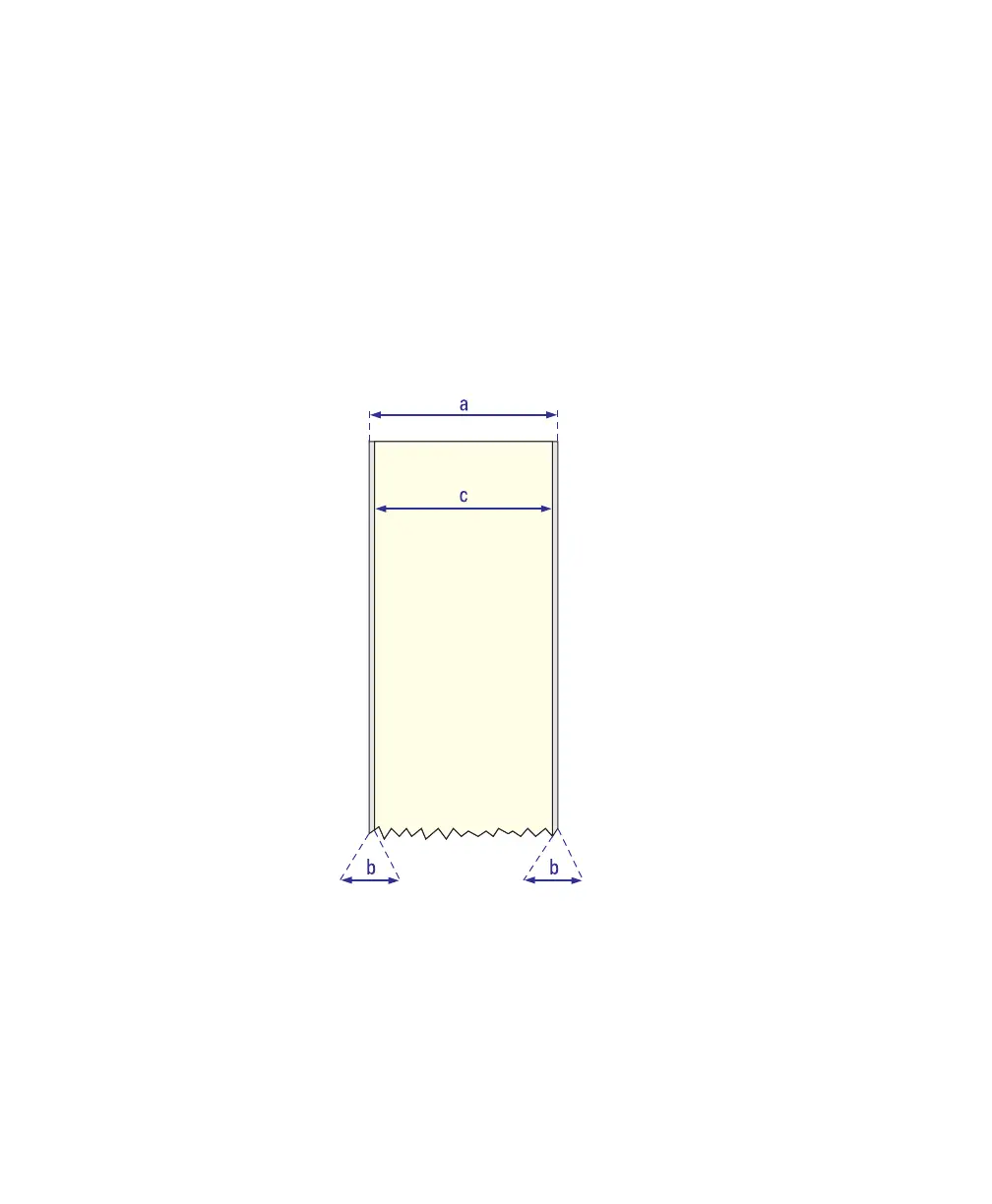

Self-Adhesive Strip (Continuous Stock)
(a) External Media Width
(including liner)
Maximum: 114.3 mm (4.5
inches)
Minimum (standard): 25 mm
(1.00 inches)
Minimum (narrow Quick-
Load): 40 mm (1.57 inches)
Minimum (wide Quick-Load):
80 mm (3.15 inches)
(b) Liner Width
The liner must not extend more
than a total of 1.6 mm (0.06
inch) past the edge of the face
material and should protrude
equally on both sides.
(c) Internal Media Width (excluding backing)
Maximum: 112.7 mm (4.43 inches)
Minimum: 23.8 mm (0.94 inches)
Media Type Setup: Continuous Stock
SELF-ADHESIVE
STRIP

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
