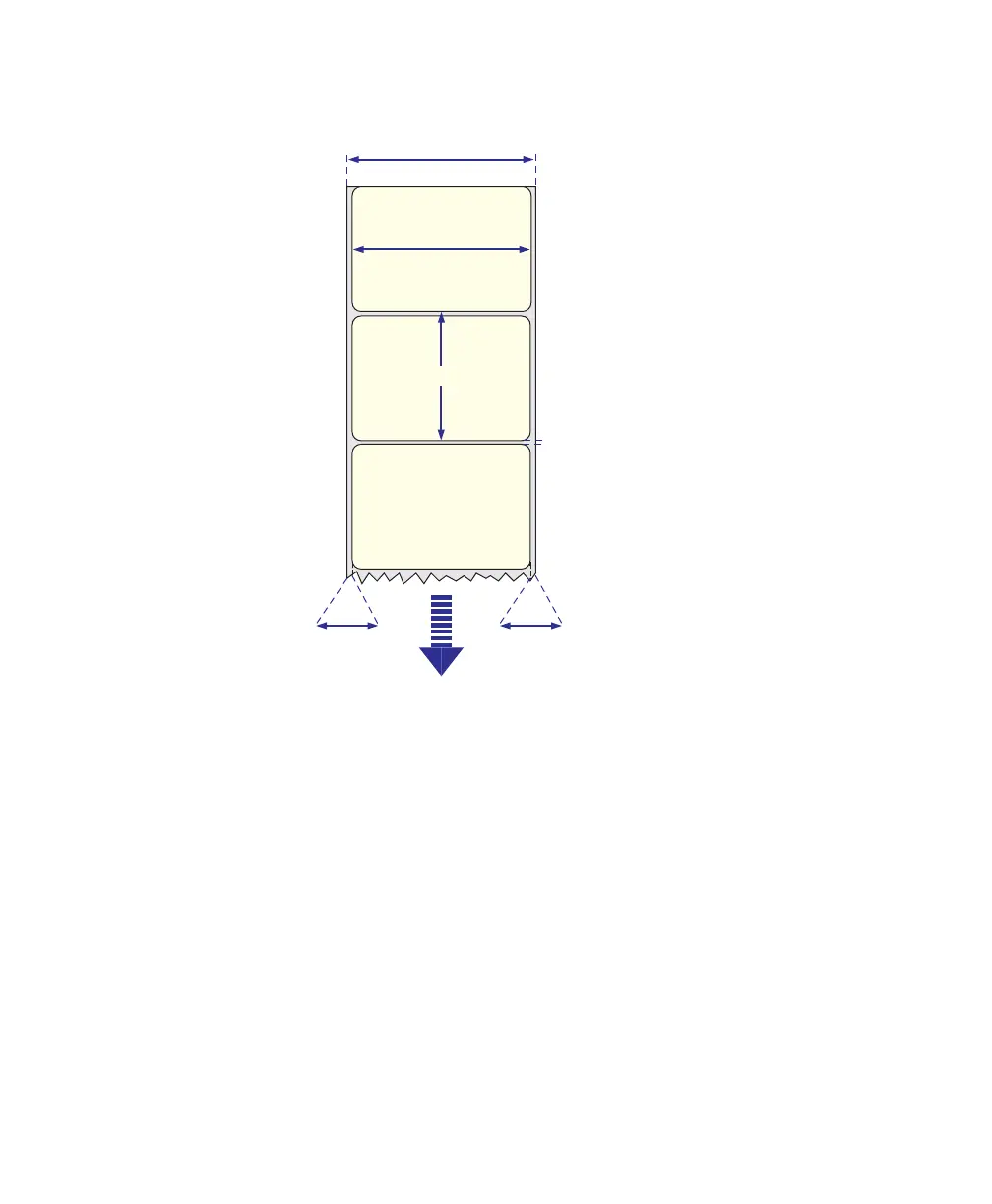

Self-Adhesive Labels (Gap Stock)
(a) External Media Width
(including liner)
Maximum: 114.3 mm (4.5
inches)
Minimum (standard): 25 mm
(1.00 inches)
Minimum (narrow Quick-
Load): 40 mm (1.57 inches)
Minimum (wide Quick-Load):
80 mm (3.15 inches)
(b) Liner Width
The liner must not extend
more than a total of 1.6 mm
(0.06 inches) past the edge of
the face material and should
protrude equally on both sides.
(c) Internal Media Width
(excluding backing)
Minimum: 23.8 mm (0.94
inches
Maximum: 112.7 mm (2.30
inches)
(d) Label Length
Minimum: 8 mm (0.32 inches)
Maximum: 6,143 mm (241 inches), provided that there is a
sufficient amount of free SDRAM memory
Under ideal circumstances, a minimum label length of 4 mm
(0.16 inches) could be used. It requires that the sum of the label
length (d) and the label gap (e) is larger than 7 mm (0.28 inches),
that batch printing is used, and that no pull back of the media is
performed. Intermec does not guarantee that such short labels
will work; it is up to the user to test it.
a
b
c
e
SELF-ADHESIVE
LABELS
b
d
FEED
DIRECTION
