Chapter C — Interfaces
118 EasyCoder PF4i User’s Guide (IPL Version)
RS-232 Interface
Protocol For The Default Setup
To change the interface settings, see Chapter 5, “Setting Up the
Printer” on page 49
Baud rate: 9600
Character length: 8 bits
Parity: None
Stop bits: 1
RTS/CTS: Disabled
ENQ/ACK: Disabled
XON/XOFF: Disabled (both ways)
New Line: CR/LF
SIgnals On Printer’s Serial Port
DB-9 Signal Meaning
1
External +5V DC*
2
TXD Tr an sm it da ta
3
RXD Receive data
4
DSR Data set ready
5
GND Ground
6
DTR Data terminal ready
7
CTS Clear to send
8 RTS
Request to send
9---Not Used

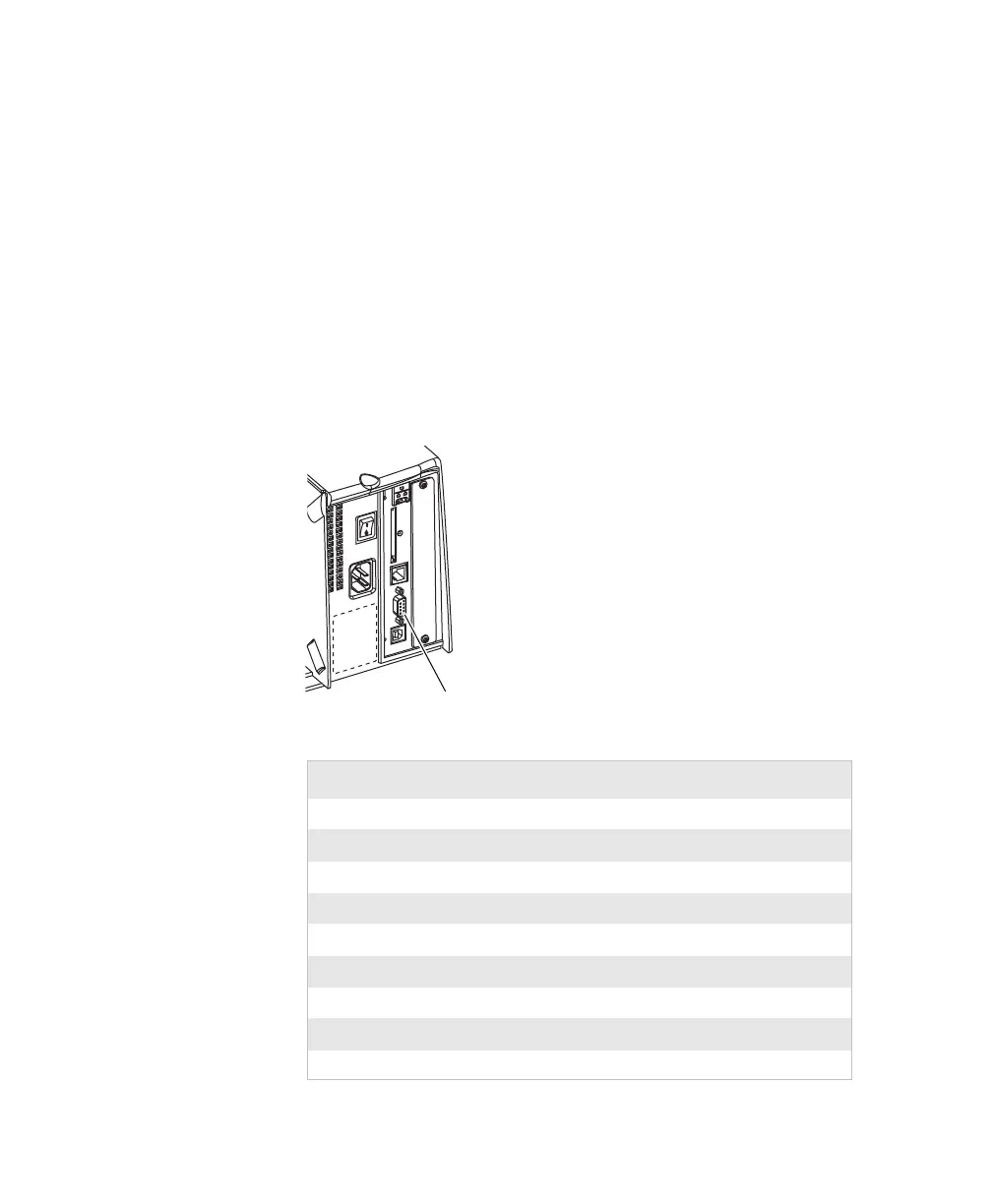

RS-232

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
