Intermec EasyCoder PF4i - Print Mechanism

Chapter 2 — Installation
EasyCoder PF4i User’s Guide (IPL Version) 11
Print Mechanism
The print mechanism features a high-performance thermal
printhead with quick-mount fittings to facilitate replacement.
The thermal transfer ribbon mechanism is omitted in dedicated
direct thermal printing models.

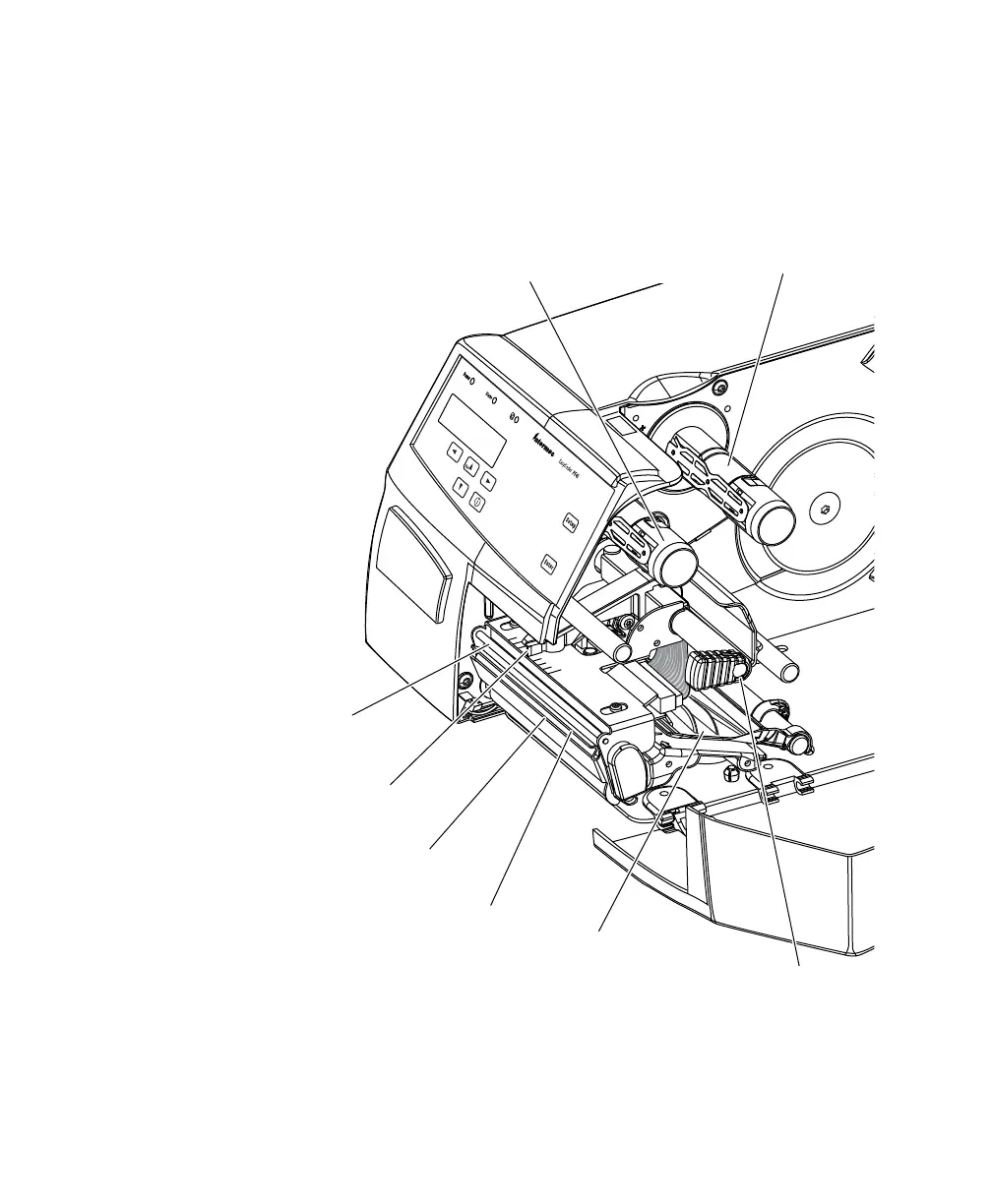

Print mechanism
Ribbon rewind hub
Ribbon supply hub
Thermal
printhead
Pressure arm
Tear bar
Platen roller
Label stop sensor
position adjustment
(bottom sensor hidden)
Printhead lift lever
