Intermec EasyCoder PF4i User Manual

Chapter 10 — Adjustments
102 EasyCoder PF4i User’s Guide (IPL Version)
Adjusting the Ribbon Break Shaft
If ribbon wrinkling occurs, you may need to adjust the alignment
of the front ribbon break shaft so that it runs parallel to the
printhead and the ribbon supply and rewind hubs. The
adjustment is done using a straightslot screw that is located
immediately behind the front ribbon break shaft.
• If the ribbon tends to slide outwards, turn the screw carefully
clockwise (forwards) to move the outer end of the break shaft
forward.
• If the ribbon tends to slide inwards, turn the screw carefully
counterclockwise (backwards) to move the outer end of the
break shaft backward.

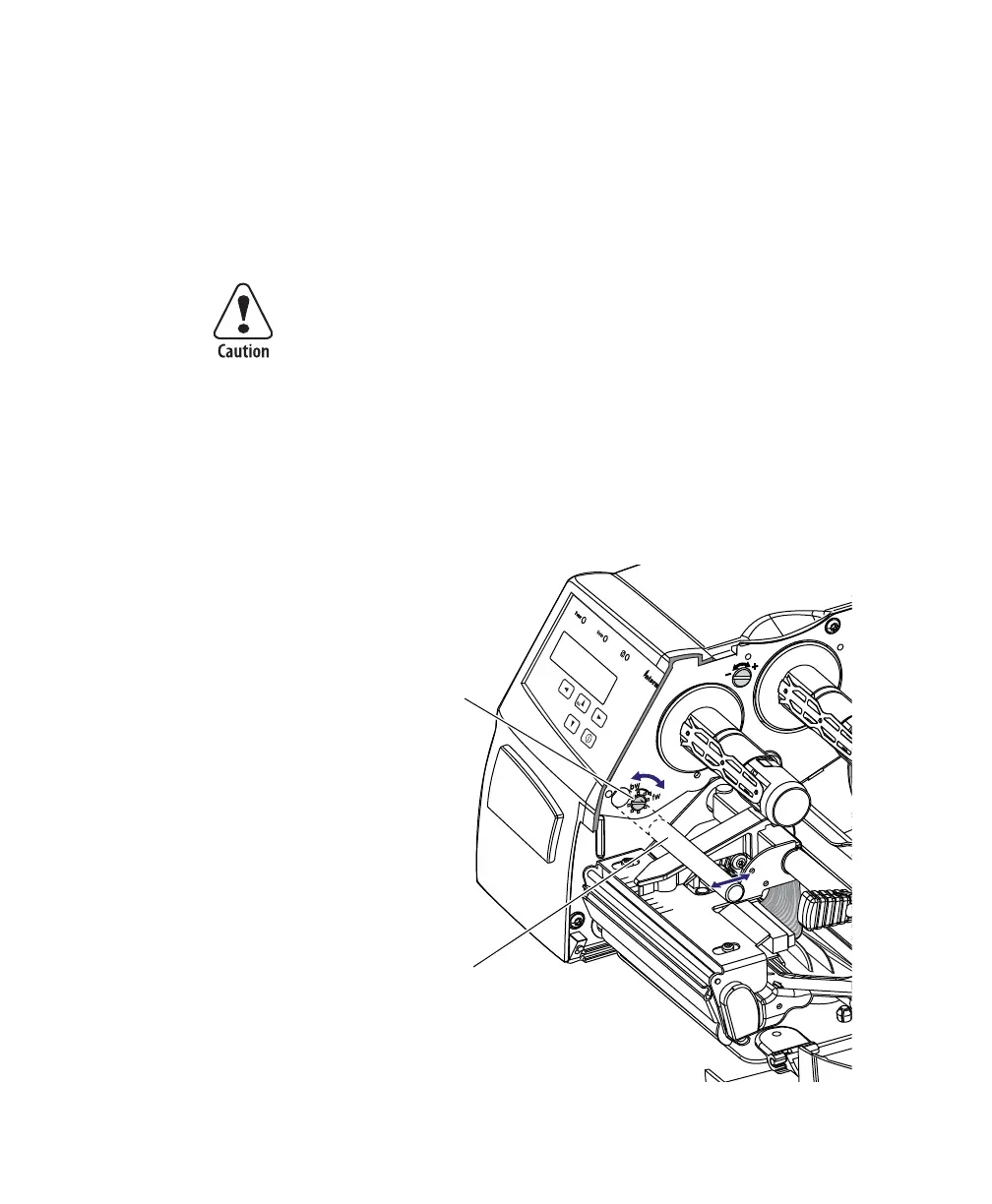

Ribbon Break Shaft Adjustment Screw
Before readjusting the break shaft, make sure that there is no
other cause for the wrinkling of the ribbon. (See Chapter 8,
“Troubleshooting” on page 73.)
Adjustment screw
Ribbon break shaft

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
