Tickets With Gaps (Gap Stock)
(a) Media Width
Maximum: 114.3 mm (4.5 inches)
Minimum (standard): 25 mm (1.00
inches)
Minimum (narrow Quick-Load): 40
mm (1.57 inches)
Minimum (wide Quick-Load): 80
mm (3.15 inches)
(b) Copy Length
Minimum: 8 mm (0.32 inches)
Maximum: 6,143 mm (241 inches)
provided there is a sufficient amount
of free SDRAM memory
Under ideal circumstances, a
minimum label length of 4 mm (0.16
inches) could be used. It requires the
sum of the label length (d) and the
label gap (e) to be larger than 7 mm
(0.28 inches), that batch printing is
used, and that no pull-back of the
media is performed. Intermec does
not guarantee that such short labels
will work; it is up to the user to test it.
(c) LSS Detection Position: Five positions, see “Label Taken
Sensor” on page 71.
(d) Detection Length
The length of the detection slit (excluding corner radii) must be a
minimum of 2.5 mm (0.10 inches) to either side (right or left) of
the label stop sensor detection position.
(e) Detection Height
Recommended: 1.6 mm (0.06 inches)
Minimum: 1.27 mm (0.05 inches)
Maximum: 21.3 mm (0.83 inches)

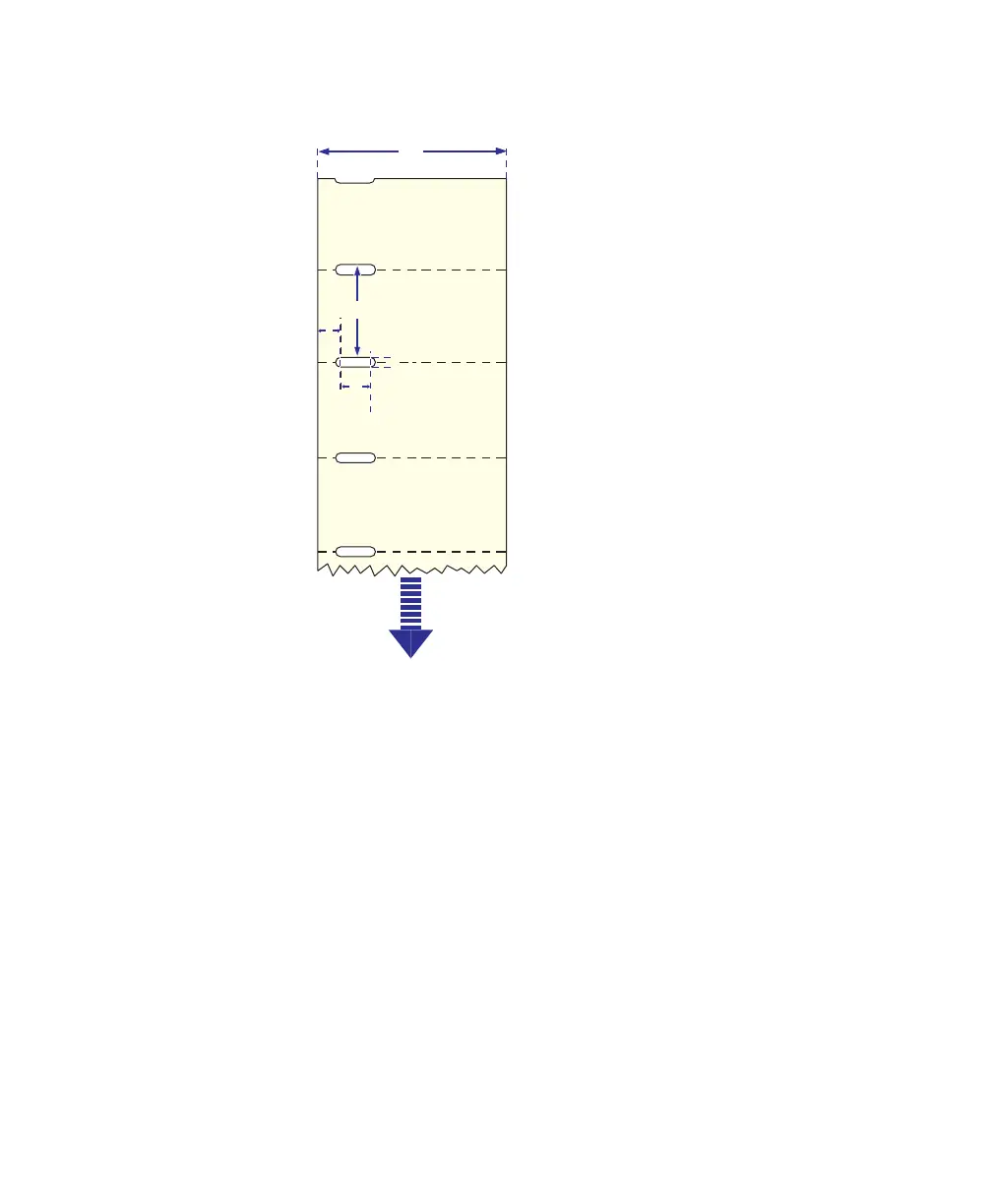

a
TICKETS & TAGS
FEED
DIRECTION
b
e
d
c
