Intermec EasyCoder PF4i User Manual

Chapter B — Media Specifications
EasyCoder PF4i User’s Guide (IPL Version) 115
Media Type Setup: Gap Stock
Tickets With Black Mark (Mark Stock)
(a) Media Width
Maximum: 114.3 mm (4.5 inches)
Minimum (standard): 25 mm (1.00
inches)
Minimum (narrow Quick-Load): 40
mm (1.57 inches)
Minimum (wide Quick-Load): 80
mm (3.15 inches)
(b) Ticket Length
Minimum: 20.0 mm (0.8 inches)
Maximum: 6,143 mm (241 inches),
provided there is a sufficient amount
of free SDRAM memory
(c) LSS Detection Position: Five
positions, see “Label Taken Sensor”
on page 71.
(d) Black Mark Width
The detectable width of the black
mark should be at least 5.0 mm (0.2
inches) on either side of the LSS
detection point.
(e) Black Mark Length
Common: 12.5 mm (0.5 inches)
Minimum: 5.0 mm (0.20 inches)
Maximum: 21.3 mm (0.83 inches)
Note: Handle perforated media carefully to avoid rips or breaks along
the perforations. Broken or ripped perforations, particularly at the
edges, may cause the media to break or misfeed during printing.
Note: Preprint that may interfere with the detection of the black mark
should be avoided.
Note: The black mark should be non-reflective carbon black on a
whitish background.

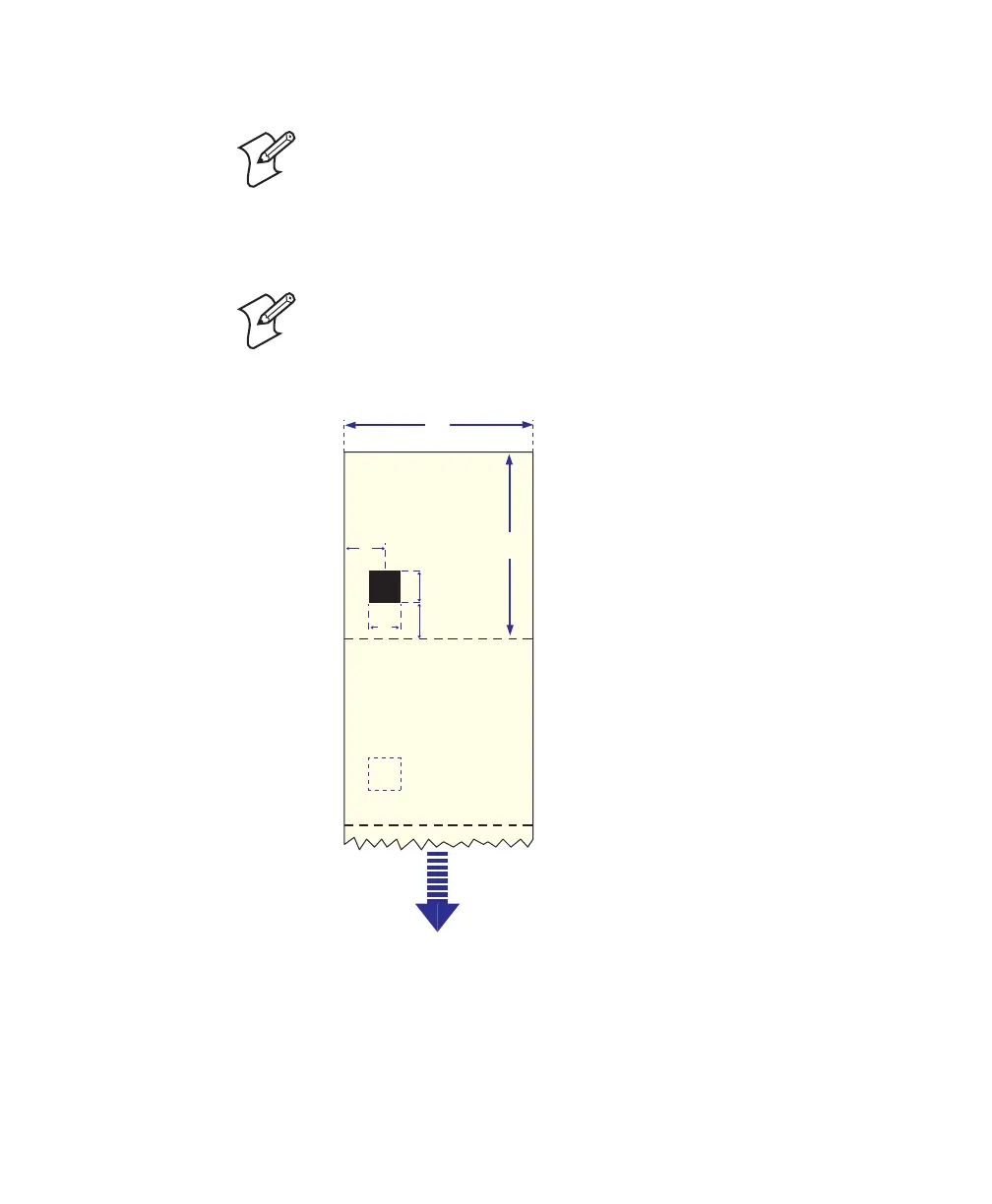

a
TICKETS
WITH MARKS
c
FEED
DIRECTION
e
d
f
b

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
