Intermec EasyCoder PF4i User Manual

Chapter B — Media Specifications
110 EasyCoder PF4i User’s Guide (IPL Version)

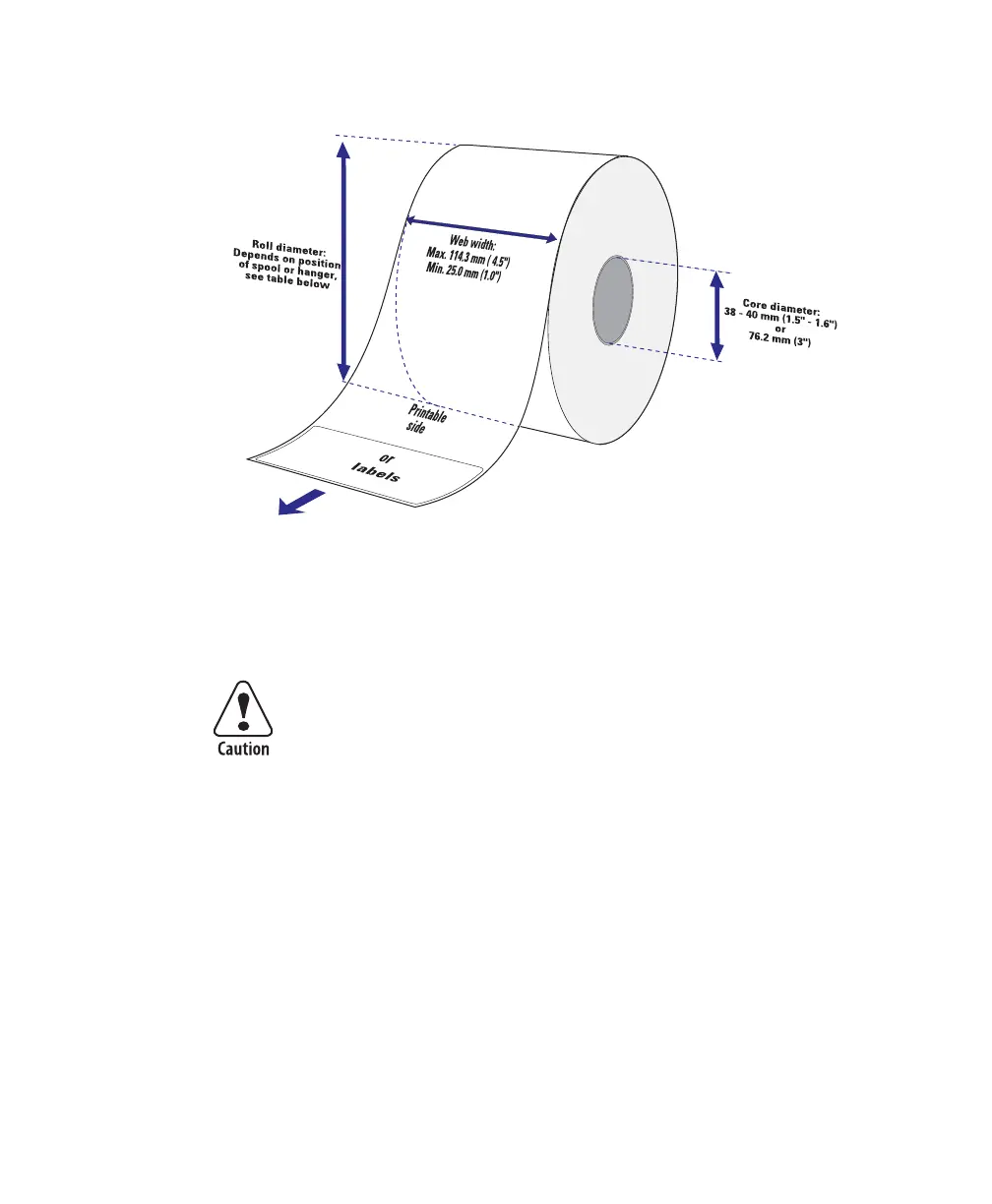

Media Roll Size
Core
Diameter (A), standard: 38-40 mm (1.5 inches), with adapter:
76.2 mm (3 inches)
Width: Must not protrude outside the media.
Media
Diameter:
• Position 1 152 mm / 6.00 inches
• Position 2 203 mm / 8.00 inches
• Position 3 213 mm / 8.38 inches
Maximum: 114.3 mm / 4.50 inches
Minimum (standard): 25 mm /1.00 inches
Minimum (Quick-Load): 40 mm / 1.57 inches
The media must be wound up on the core in such a way that the
printer can pull the end free.

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
