Chapter 6 — Setup Mode
62 EasyCoder PF4i User’s Guide (IPL Version)
Navigating in Setup Mode
Enter the Setup Mode by pressing the Setup key on the printer’s
front panel. Text in the display guide you through the setup
procedure. Use the printer’s keyboard to navigate menus,
acknowledge displayed values, or select or enter new values.
Setup Mode is organized as an endless loop with a number of
sub-categories. At startup, the firmware determines if an
EasyLAN interface board is installed in the printer. If so, the
Network setup menus are shown in the Setup Mode.

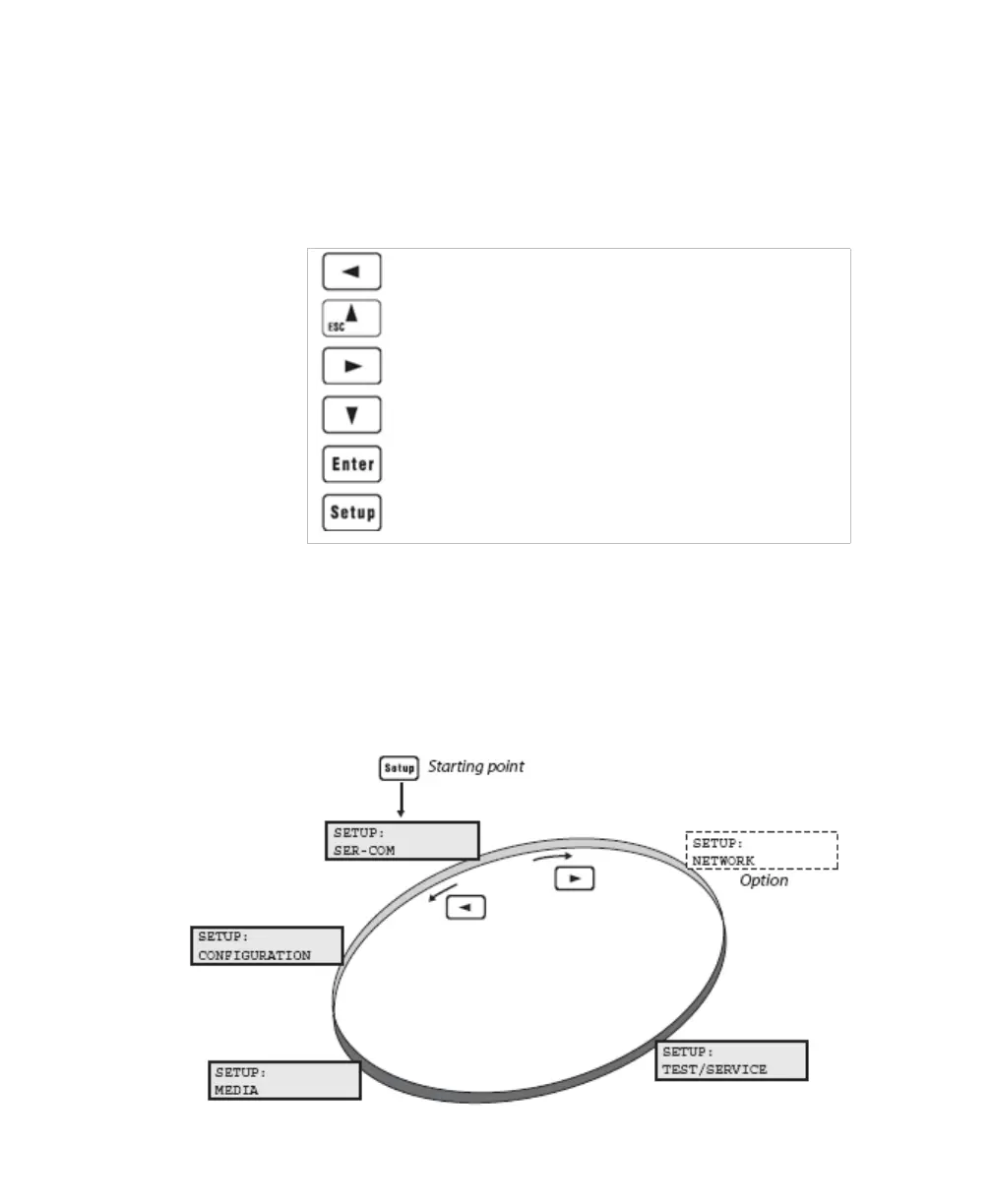

The diagram below shows the options in the main loop. Detailed
overviews are shown on the following pages.
Move one step back on the same level.
Move up one level without changing the setting.
Move forward on the same level.
Move down one level.
Acknowledge and move to next menu.
Exit Setup Mode. Can be used anywhere in Setup Mode.

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
