Intermec EasyCoder PF4i User Manual

Chapter 2 — Installation
EasyCoder PF4i User’s Guide (IPL Version) 15
Keyboard Color Code
Yellow: Operation of the printer (operator level)
Green: Setup or service (site or service technician level)
White: Data input to printer (operator or technician level)
Beeper
The beeper acknowledges that a key has been pressed. Optionally,
an audible alarm can be enabled using an IPL command that will
start beeping at paper out and ribbon out and continue until the
start of reload.
Switching On the Printer
Before switching on the printer, make the necessary connections,
and check that the printhead is engaged.
Switch on the power using the On/Off switch on the rear plate.
The “Power” control lamp on the front panel lights up when the
power is on. Wait for a few moments while the printer loads the
program and runs some self-diagnostic tests.

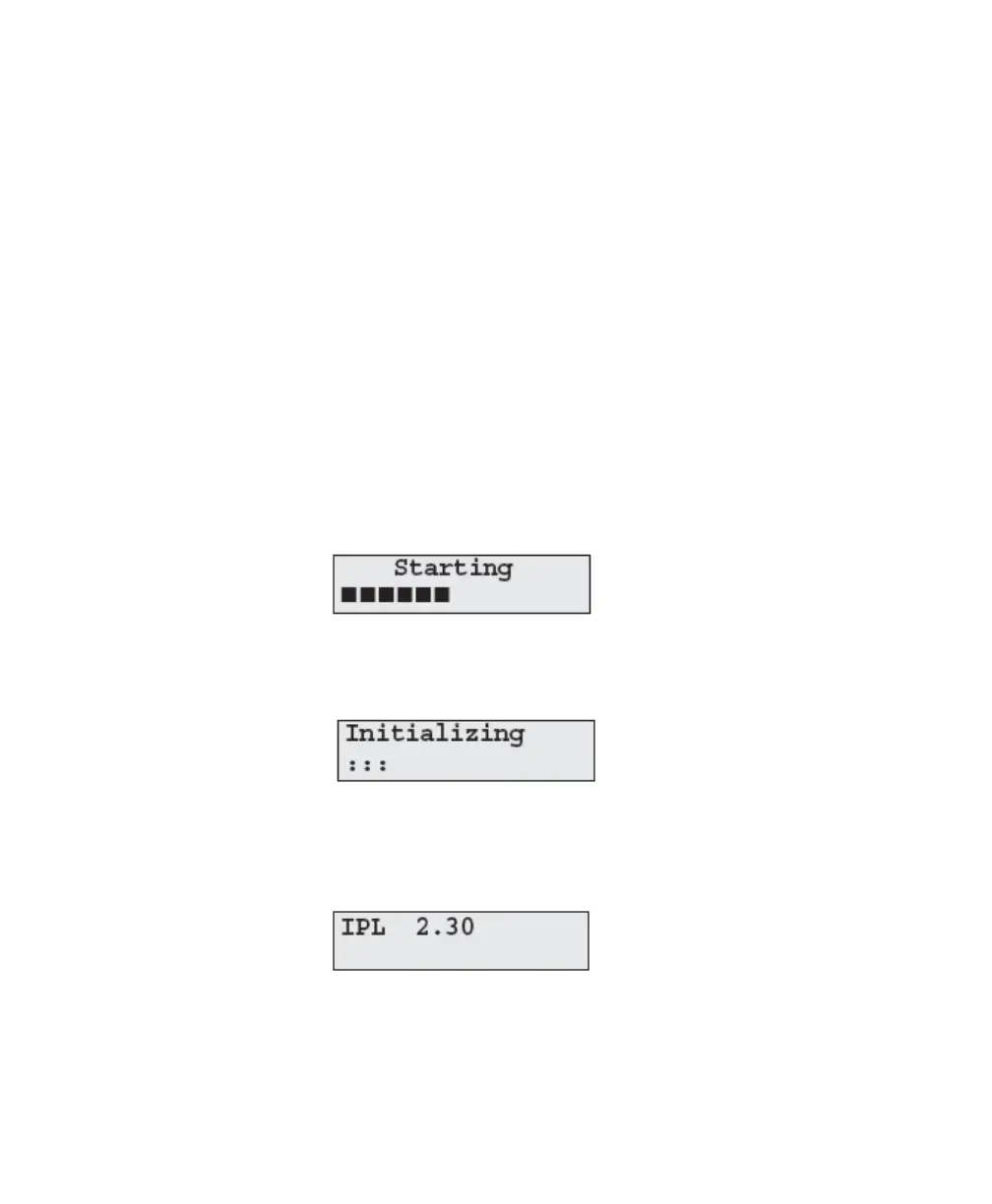

After a short time, the printer is initialized. The progress of the
initialization is indicated by an increasing number of colons on
the lower line in the display.
When the initialization is completed, a label is fed out. The
following message, which is the IPL version number, appears in
the Display Window, indicating that the printer is ready for
operation.

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
