Chapter B — Media Specifications
EasyCoder PF4i User’s Guide (IPL Version) 113
(e) Label Gap
Recommended: 3.0 mm (0.12 inches)
Minimum: 1.20 mm (0.05 inches)
Maximum: 21.3 mm (0.83 inches)
The Label Stop Sensor must be able to detect the extreme front
edges of the labels. For more information, see “Adjusting the
Label Stop Sensor” on page 101.
Media Type Setup: Gap Stock

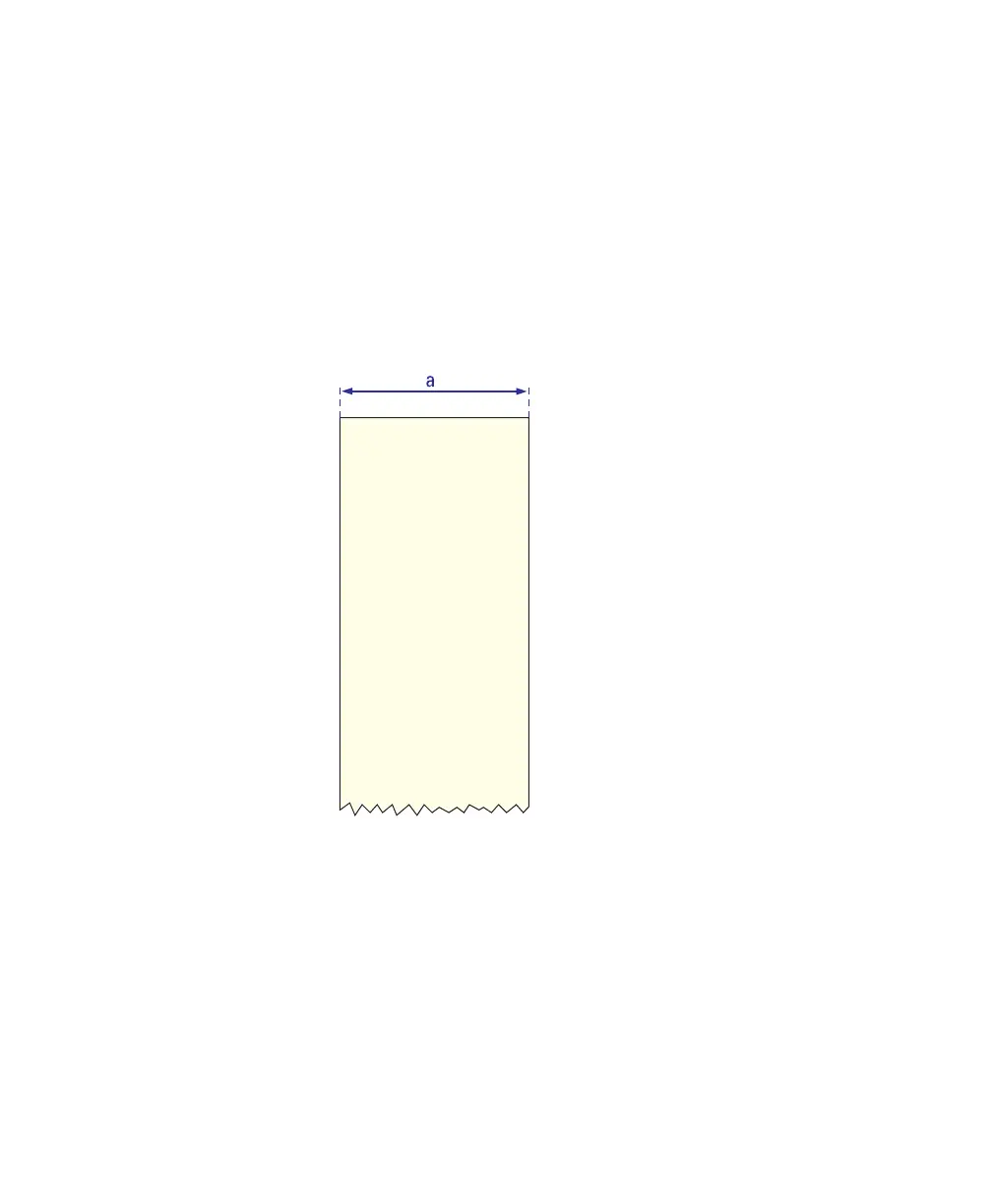

Non-Adhesive Strip (Continuous Stock)
(a) Media Width
Maximum: 114.3 mm (4.5 inches)
Minimum (standard): 25 mm (1.00
inches)
Minimum (narrow Quick-Load): 40
mm (1.57 inches)
Minimum (wide Quick-Load): 80
mm (3.15 inches)
Media Type Setup: Continuous Stock
NON-ADHESIVE
STRIP
