Intermec EasyCoder PF4i User Manual

Chapter 9 — Maintenance
82 EasyCoder PF4i User’s Guide (IPL Version)
Printhead Cleaning
Cleaning the printhead on a regular basis is important for the life
of the printhead and for the printout quality. You should clean
the printhead each time you replace the media. This section
describes how to clean the printhead using cleaning cards. If
additional cleaning is required, for example removing adhesive
residue from the platen roller or tear bar, use a cotton swab
moistened with isopropyl alcohol.

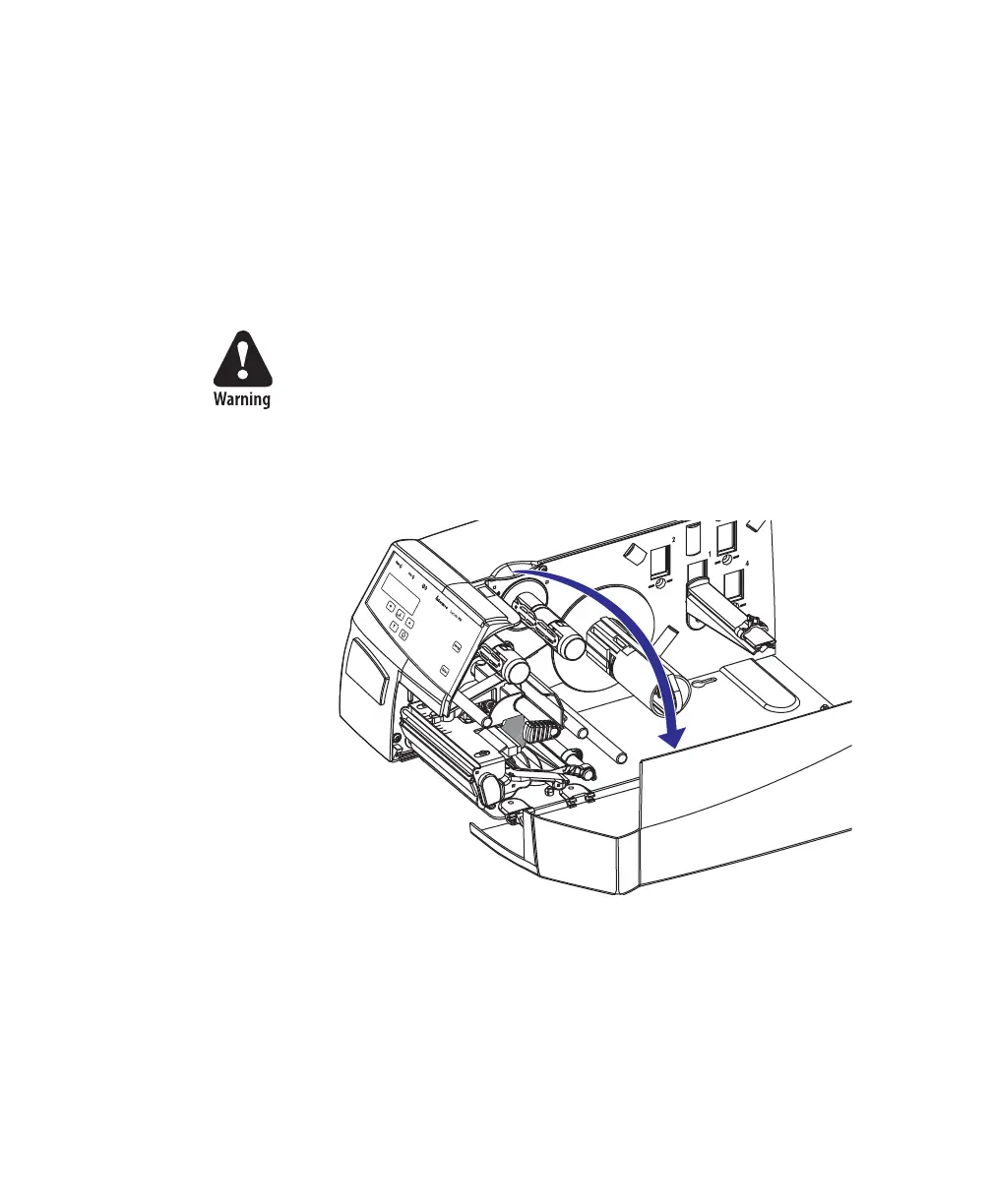

To clean the printhead
1 Open the side door.
Isopropyl alcohol [(CH-3)2CHOH; CAS 67-63-0] is a highly
flammable, moderately toxic, and mildly irritating substance.

Intermec EasyCoder PF4i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Power consumption (standby)	15 W
Power consumption (printing)	300 W
Media thickness	3/7.5 mm
Maximum label width	104 mm
Maximum label length	0.4 m
Maximum roll diameter	152.4 /213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Product color	Blue, Silver
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	405 mm
Width	244 mm
Height	178 mm
Weight	8000 g
