Chapter 9 — Maintenance

EasyCoder PF4i User’s Guide (IPL Version) 83

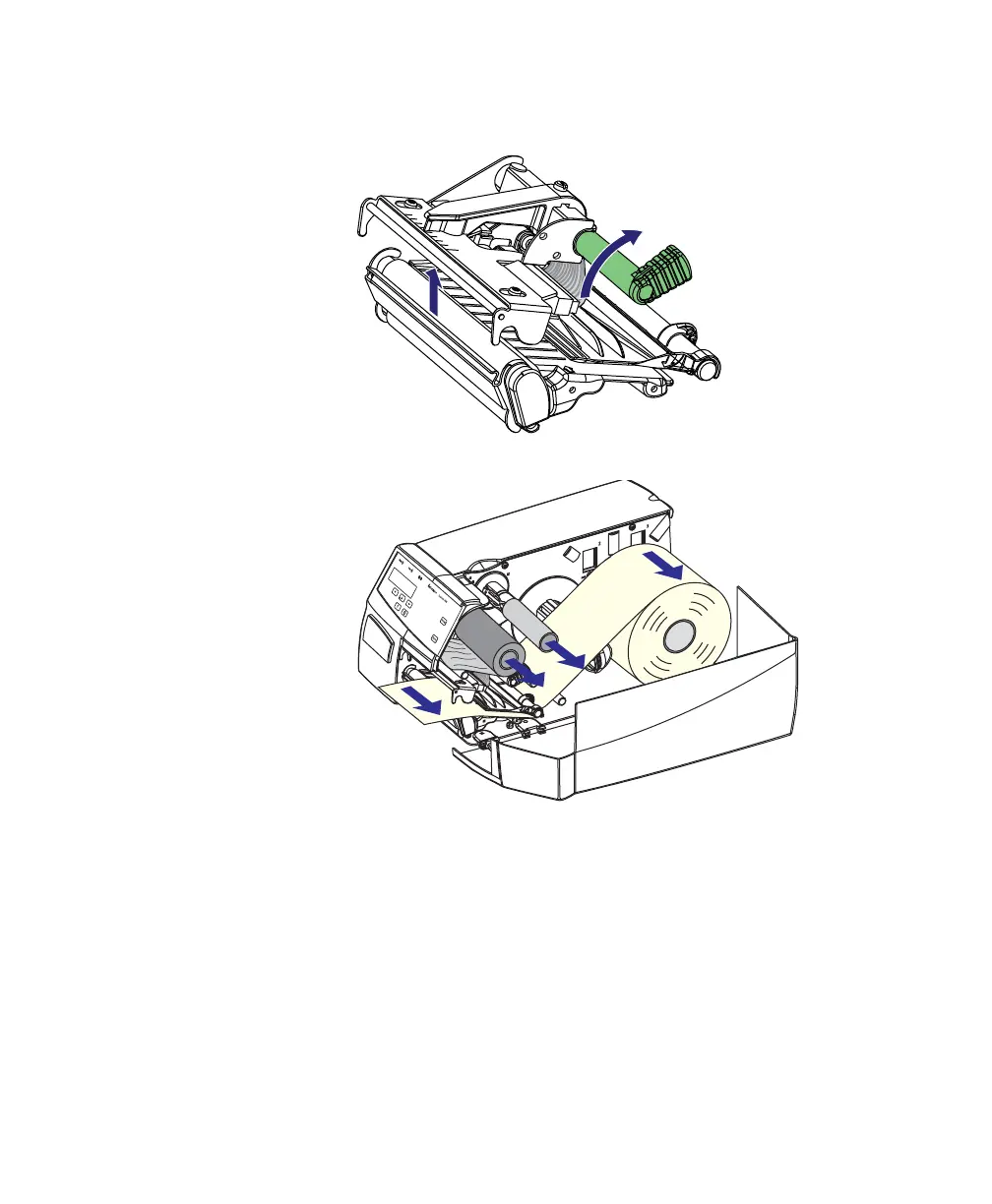

2 Turn the printhead lift lever counterclockwise to raise the

printhead.

3 Remove any media and transfer ribbon.
