Chapter 3 — Media Load

22 EasyCoder PF4i User’s Guide (IPL Version)

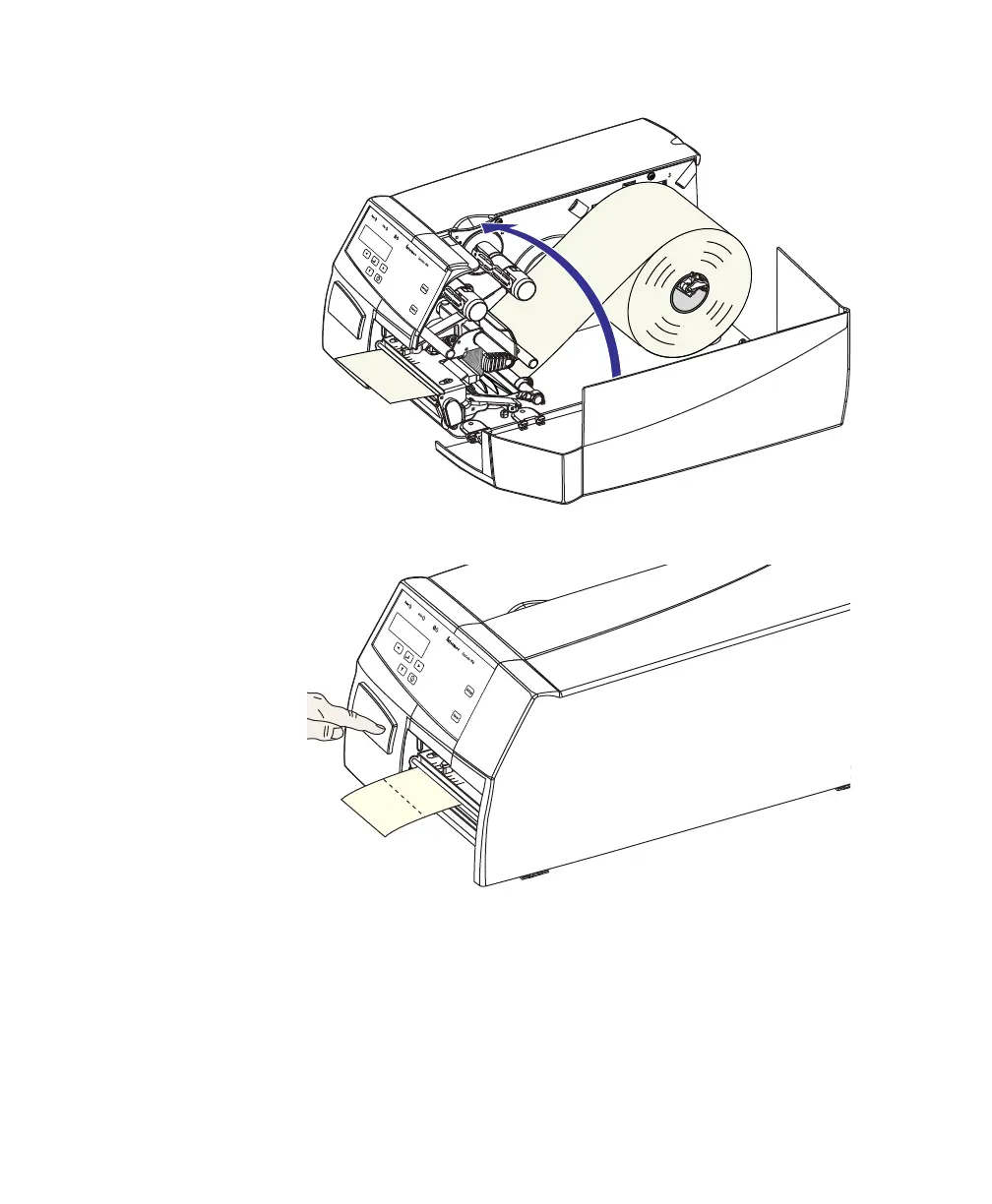

9 Close the side door.

10 Press the Feed/Pause key to advance the media and adjust the

media feed.
