Chapter 3 — Media Load

EasyCoder PF4i User’s Guide (IPL Version) 33

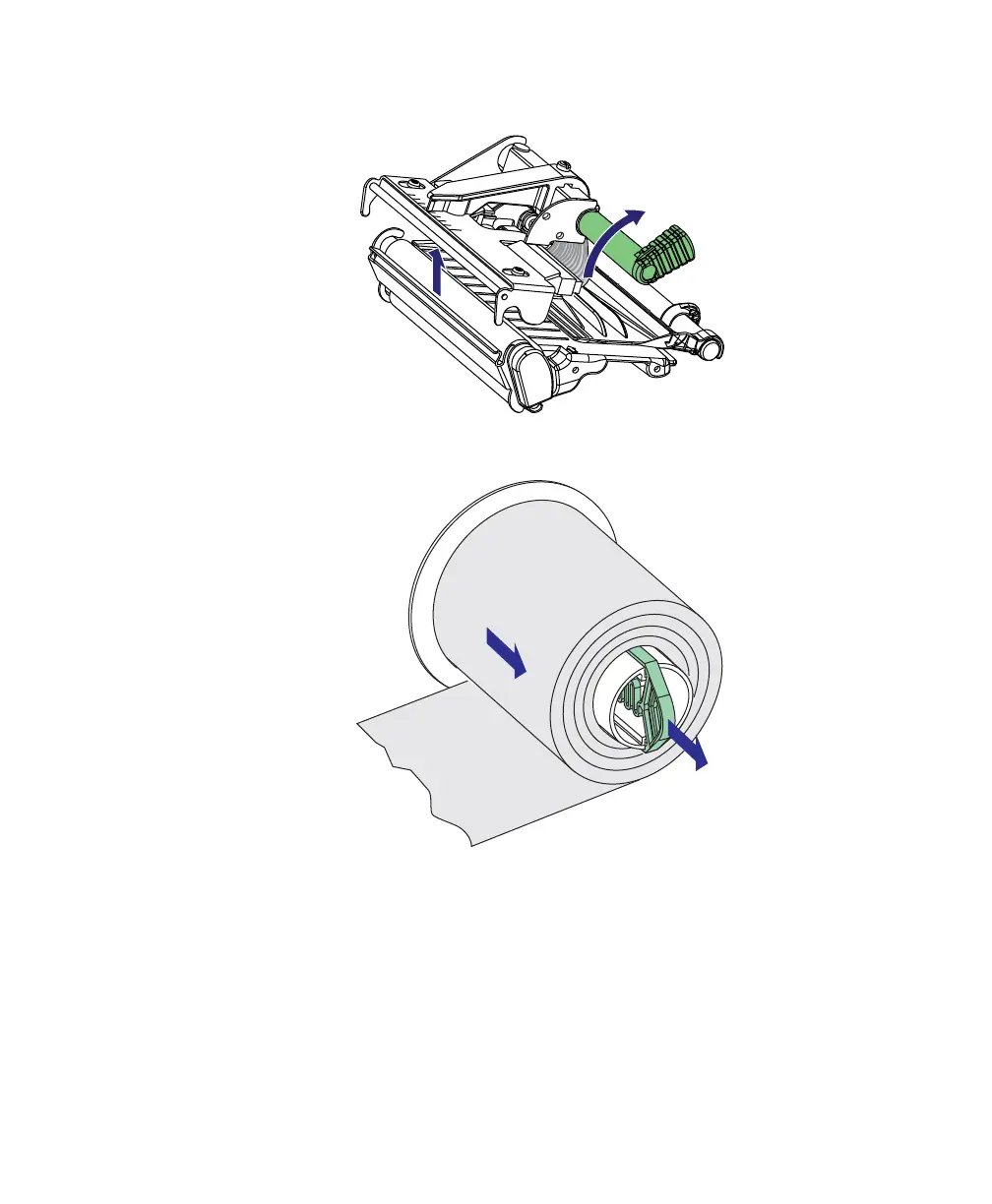

2 Turn the printhead lift lever clockwise to raise the printhead.

3 Pull out the handle to collapse the takeup hub and then

remove any remaining liner.
