Chapter 4 — Ribbon Load for Thermal Transfer Printing

EasyCoder PF4i User’s Guide (IPL Version) 47

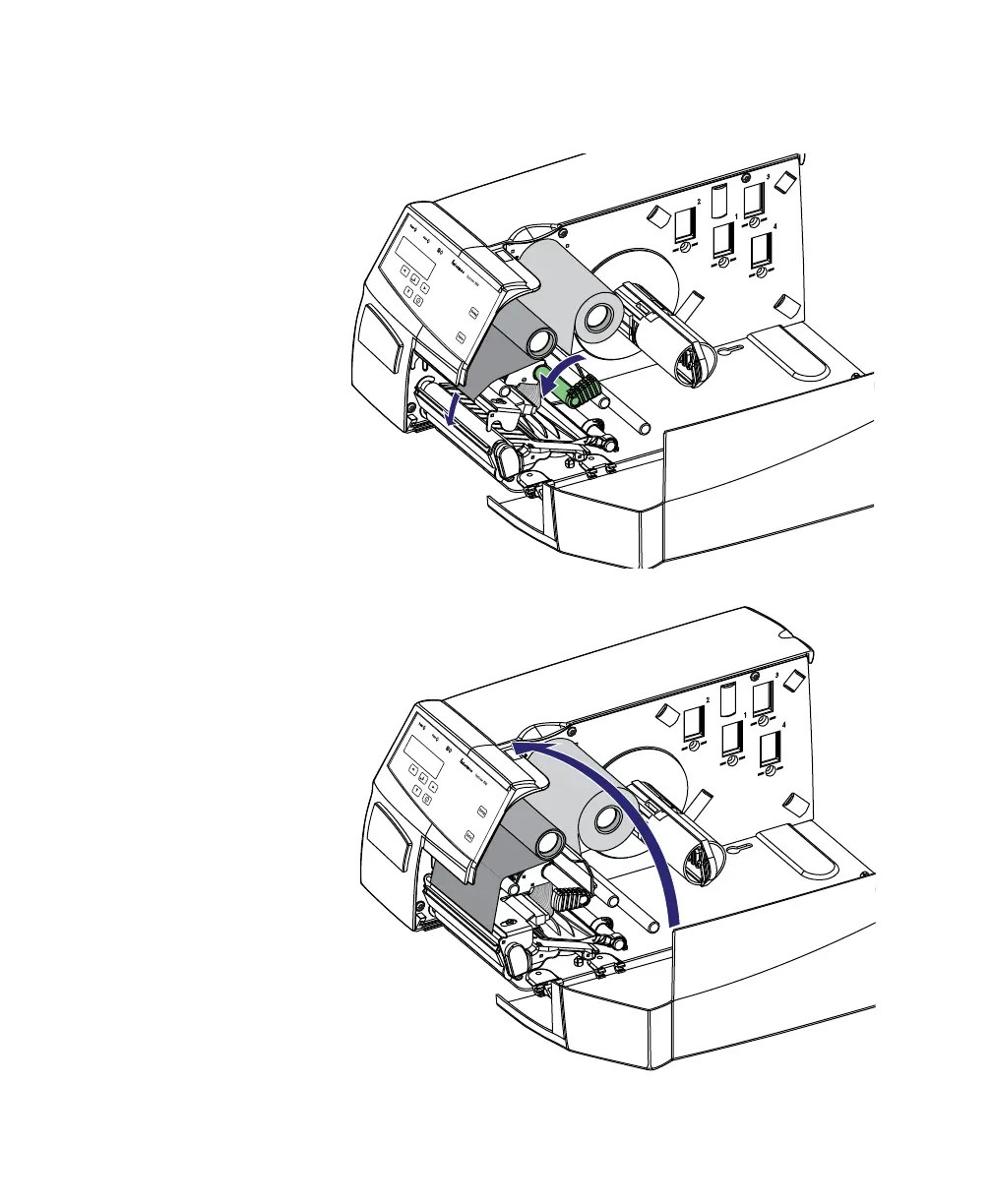

10 Turn the printhead lift knob counterclockwise to engage the

printhead.

11 Close the side door.
