1.7.4 Safety Labels Description and Location

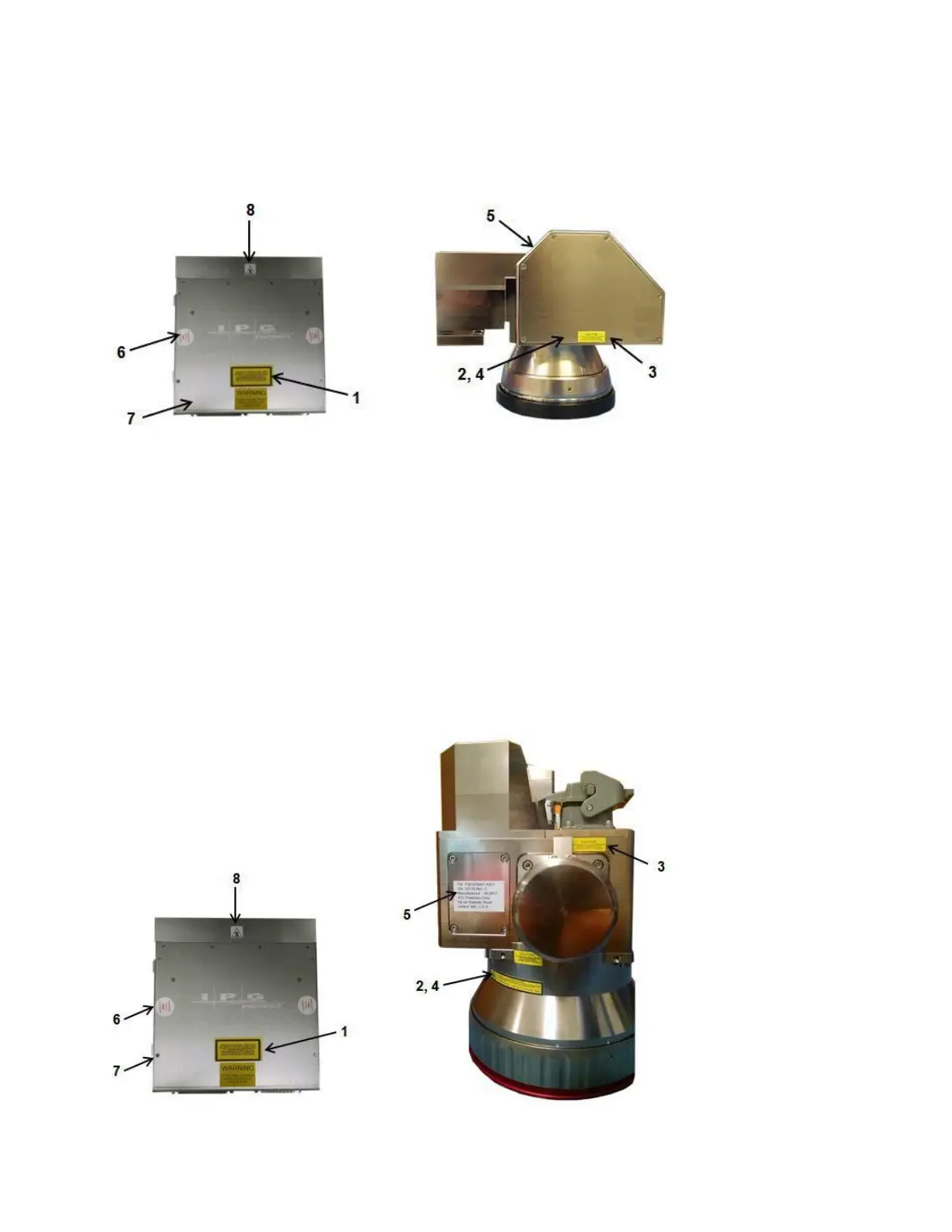

The location of the safety labels on the Mid-Power lasers, are shown in Figure 1-1.
Figure 1-1 Mid-Power Safety Label Location
The label locations are as follows:
1. Component Label: Top of Scan Controller.
2. Laser Radiated Hazard Label: Both sides of Scan head.
3. Class 4 Laser Product Label: various locations on Scan head.
4. Aperture Label: Both sides of Scan head.
5. Identification Label: Back of Scan head and sides of Scan Controller.
6. Warranty Void Sticker: Top of Scan Controller (various locations)
7. Functional Earth Label: Side of Scan Controller
8. Hot Surface Label: Top of Scan Controller.
The location of the safety labels on the High-Power lasers, are shown in Figure 1-2.
Figure 1-2 High-Power Safety Label Locations
