4 Mechanical Connections and Drawings
The following sections outline the mechanical dimensions and connections for each specific product.
4.1 Mid-Power Scanner
4.1.1 Mid-Power Scanner with Bayonet Input
Please refer to Figure 4-1 for mechanical dimensions and working distances of Mid-Power Scanners with
Bayonet Input.

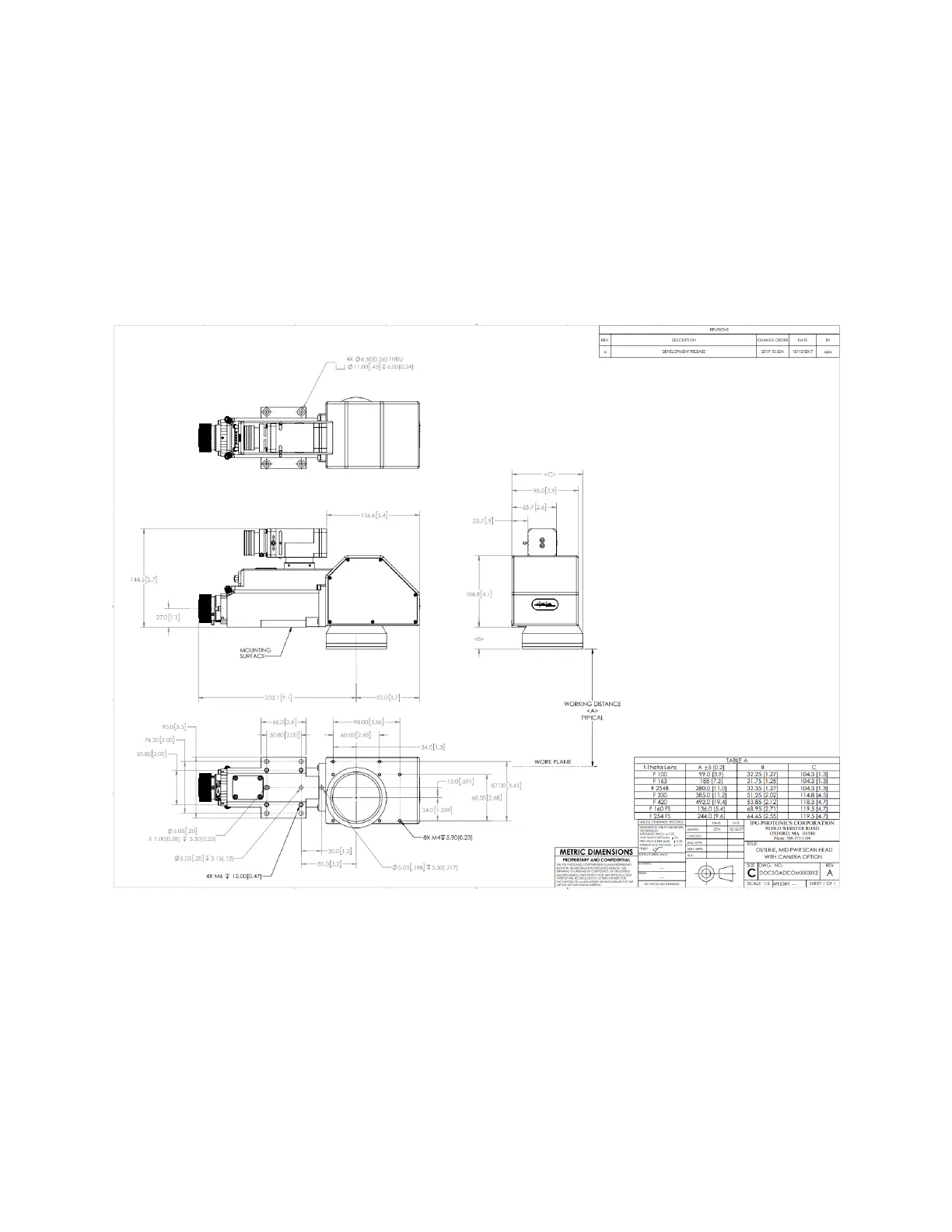

Figure 4-1 Mid-Power Scanner with Bayonet Input Mechanical Drawing
IMPORTANT
Camera arm purchased separately from the scanner.
