4.3.3 3D High-Power Scanner

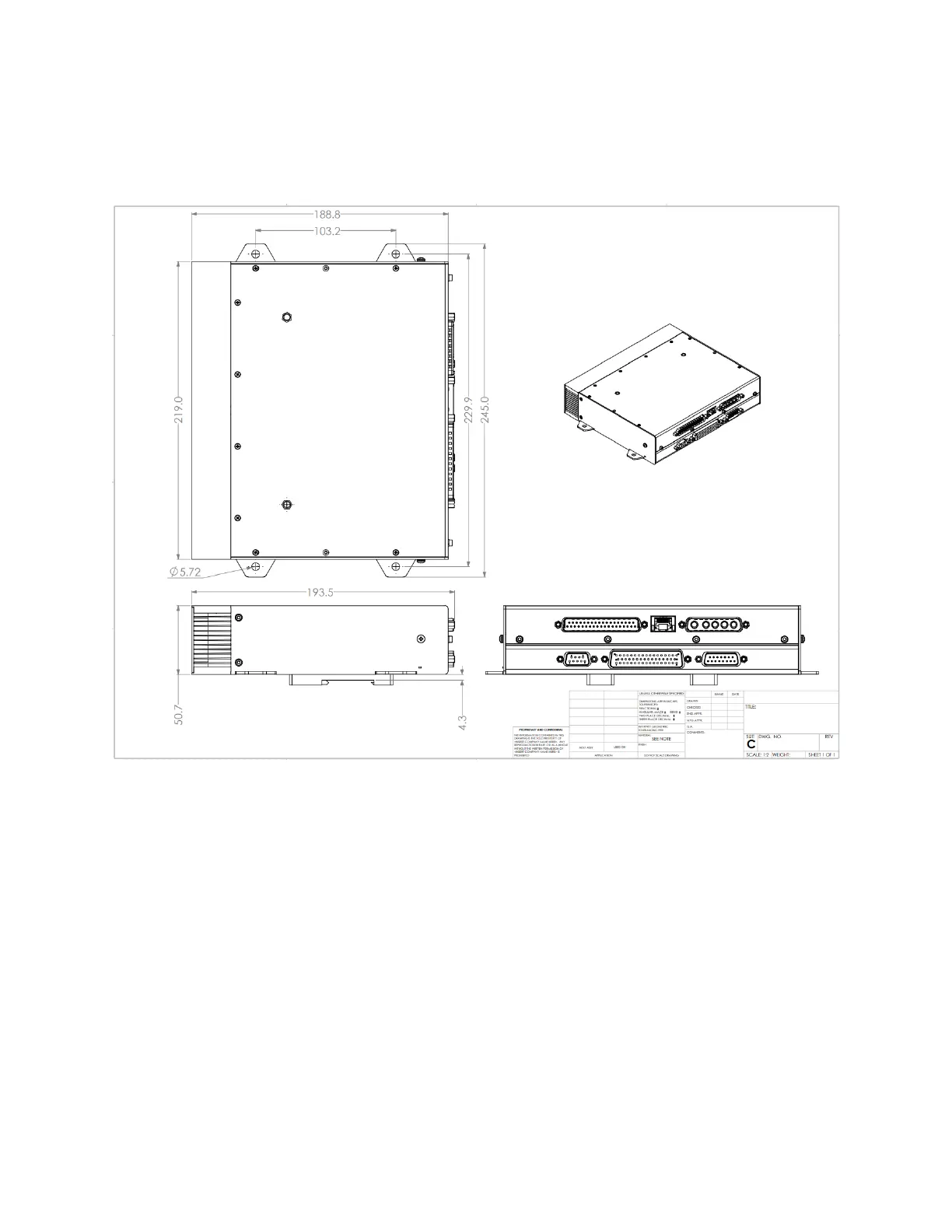

Figure 4-8 provides the dimensions of a Scan Controller for the 3D High Power Scanner.
Figure 4-8 3D High-Power Scan Controller Mechanical Drawing
4.3.3.1 3D High-Power Scan Controller Mounting Options
The 3D High-Power Scan Controller mounting options include the following:
 Two (2) removable DIN Rail Mounts with T35 clips
 Four (4) fixed mounting tabs (remove DIN Rail Mounts)
