4.3.2 Mid-Power and 2D High-Power Scanners
Figure 4-7 provides the dimensions of a Scan Controller for both Mid-Power and 2D High Power
Scanners. XY2-100 Interfaces have the same mechanical dimensions but differing electrical connectors.

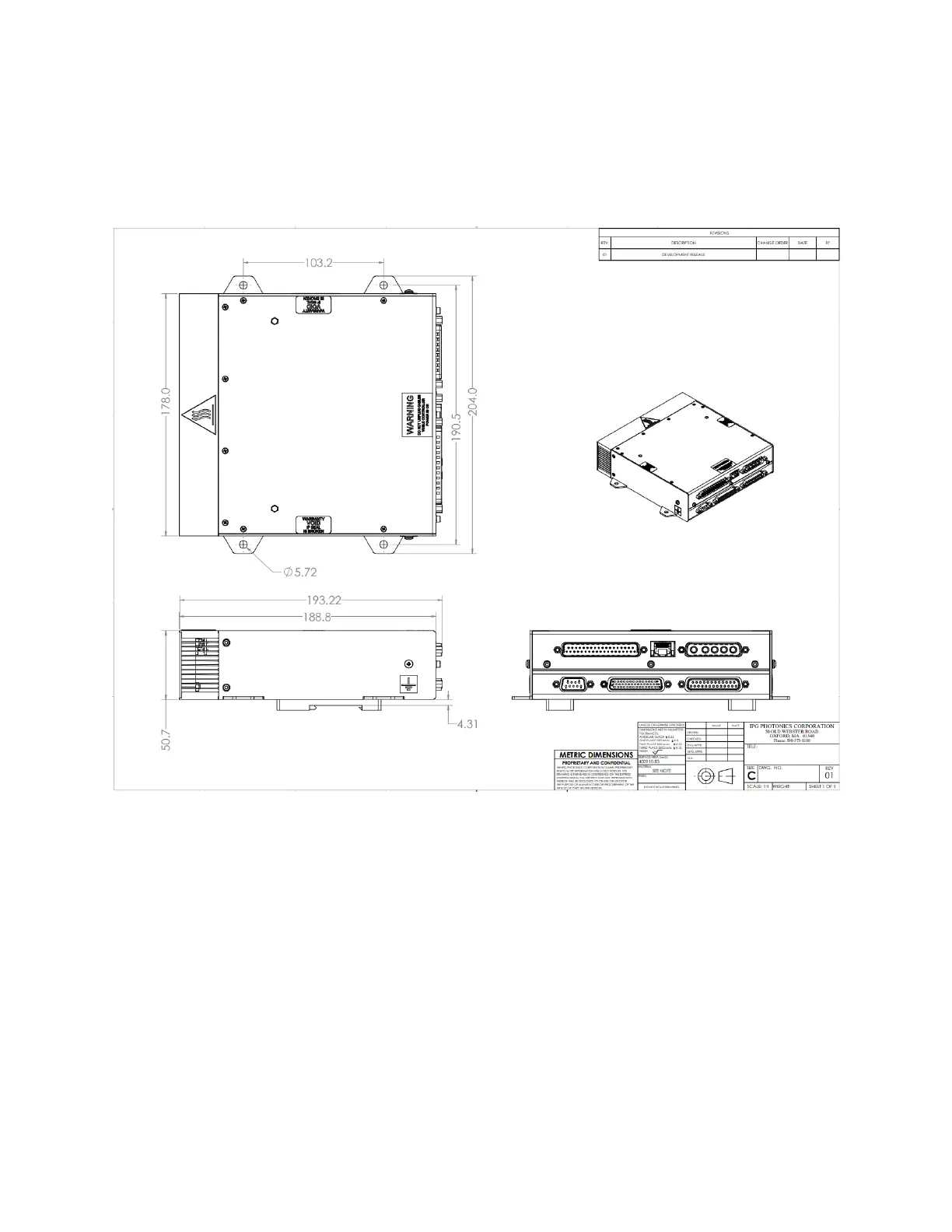

Figure 4-7 Scan Controller Mechanical Drawing
4.3.2.1 Mid-Power and 2D High-Power Scan Controller Mounting Options
The Mid-Power and 2D High-Power Scan Controller mounting options include the following:
 Two (2) removable DIN Rail Mounts with T35 clips
 Four (4) fixed mounting tabs (remove DIN Rail Mounts)
