6.2.3 Auxiliary I/O
Table 6-15 outlines the auxiliary I/O pinouts on the XY2-100 interface. This connector provides an
alternative input to control the guide beam.

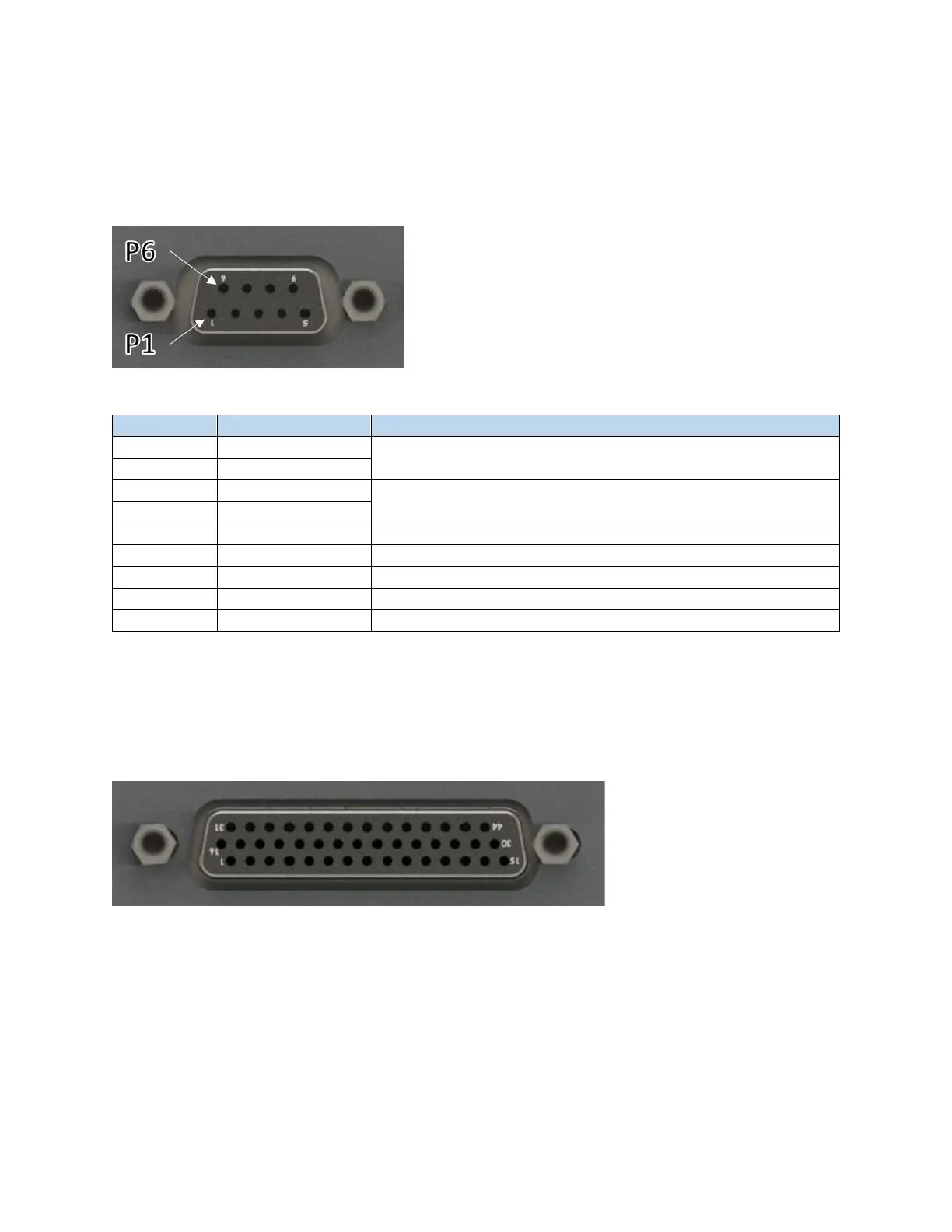

Figure 6-19 Female DB 9 Connector (XY2-100)
Table 6-15 XY2-100 Auxiliary I/O Pinouts
Pin
Name
Description
1
A1
Not used in this configuration
6
A2
2
B1
Not used in this configuration
7
B2
3
GL_ON
Guide Laser On
8
GND
Guide Laser Signal Return
4
FL_ON
Focus Guide (if available)
9
GND
Focus Guide Return
5
NC
Do Not Connect
6.2.4 Scanner Control
This provides the connection between the Scan Controller and scan head. IPG provides the cable to be
utilized here. Users are not allowed to interface with this connector.
Figure 6-20 Female DB 44 Connector (XY2-100)
