4.2.3 Mounting Specification
When mounting the scanner without the standard mounting bracket, the specifications outlined in Table
4-2 apply.
Table 4-2 2D High-Power Scanner Mounting Specification (No Standard Mount Bracket)
M6 Screw Specification
Thread Engagement (mm)
6 – 9 (Prefer high end for greatest strength)
Torque (in*lbs)
50 – 100 (No lubrication. Prefer high end of torque spec for robotic
applications)
Additional Recommendations
Lock washers recommended. No Loctite.
M6 Dowel Specification
Diameter (mm)
6 +.004/+.012
Dowel Engagement (mm)
3 – 5

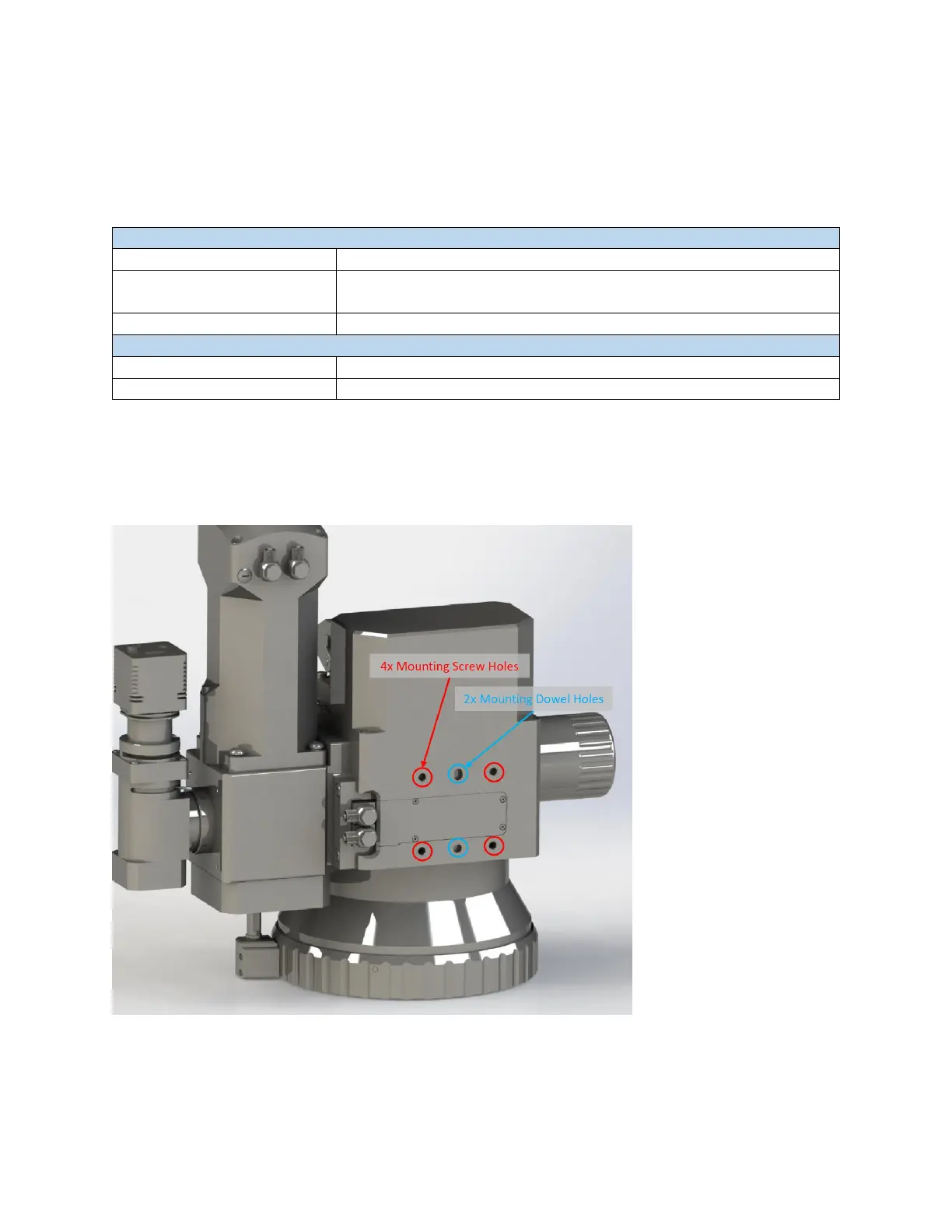

Figure 4-5 outlines the mounting screw and dowel hole locations on the back of the 2D High Power
Scanner.
Figure 4-5 2D High-Power Scanner Mounting Holes
