IPG Photonics Scanner Series - XY2-100 Connector Description (MID-Power Scanner Only)

55
6.2 XY2-100 Connector Description (Mid-Power Scanner Only)

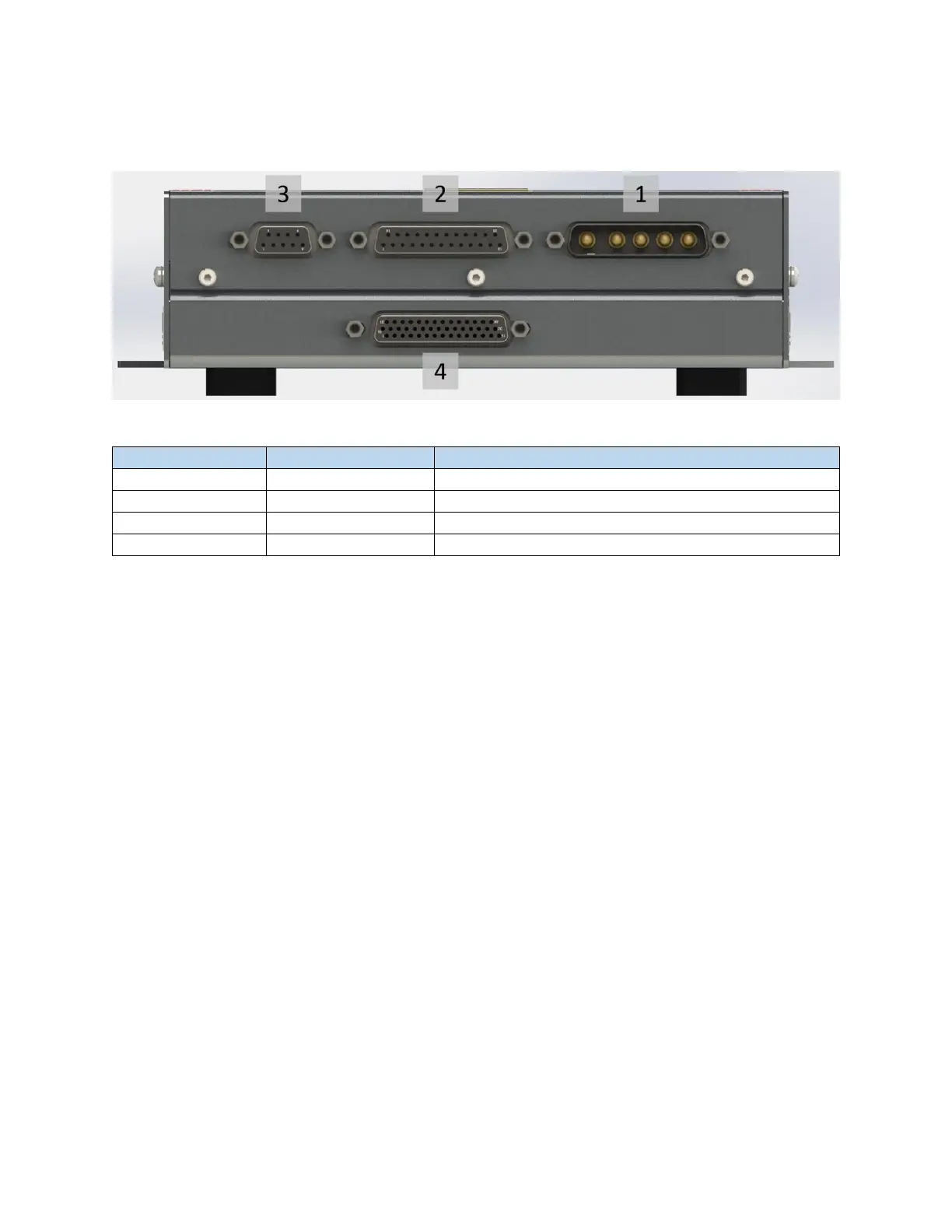

Figure 6-13 XY2-100 Connections
Table 6-10 XY2-100 In/Out Connector Descriptions
Connector Number
Connector Type
Description
1
DB 5W5 - Male
Power supply
2
DB 25 - Female
XY2-100 Digital Signals
3
DB 9 - Female
Auxiliary IO
4
DB 44 - Female
Scanner Controller
Each connection is described below in further detail.
