BoomLiftModels X20JPLUS
USINGTHEMACHINE
MUX20JP021602
However,duetocausesderivingfromleaksandmalfunctioning,itmaybeneces‐
sarytooperate manuallytotakethebaskettotheoptimalposition.Actasfollows
tomakethisadjustment:
•try to take the basket to the traversing position by closing the extendable
structurecompletely(this,onlyiftheproblemwasmetw
hilethebasketwasata
highposition);
• onlycarryoutthisoperationifnobasketlevellingexceeds10°.Ifthisisnotthe
casecarryoutmanuallevellingatminimumheightpossible,compatiblywiththe
limitof10°.Theminimumheightisreachedbycompletelyclosing1°and2°bo‐
om,extension,jibandwhenpossi
blethe3°boom;
•introducethekeyintotherelevantslotintheremotecontrol;

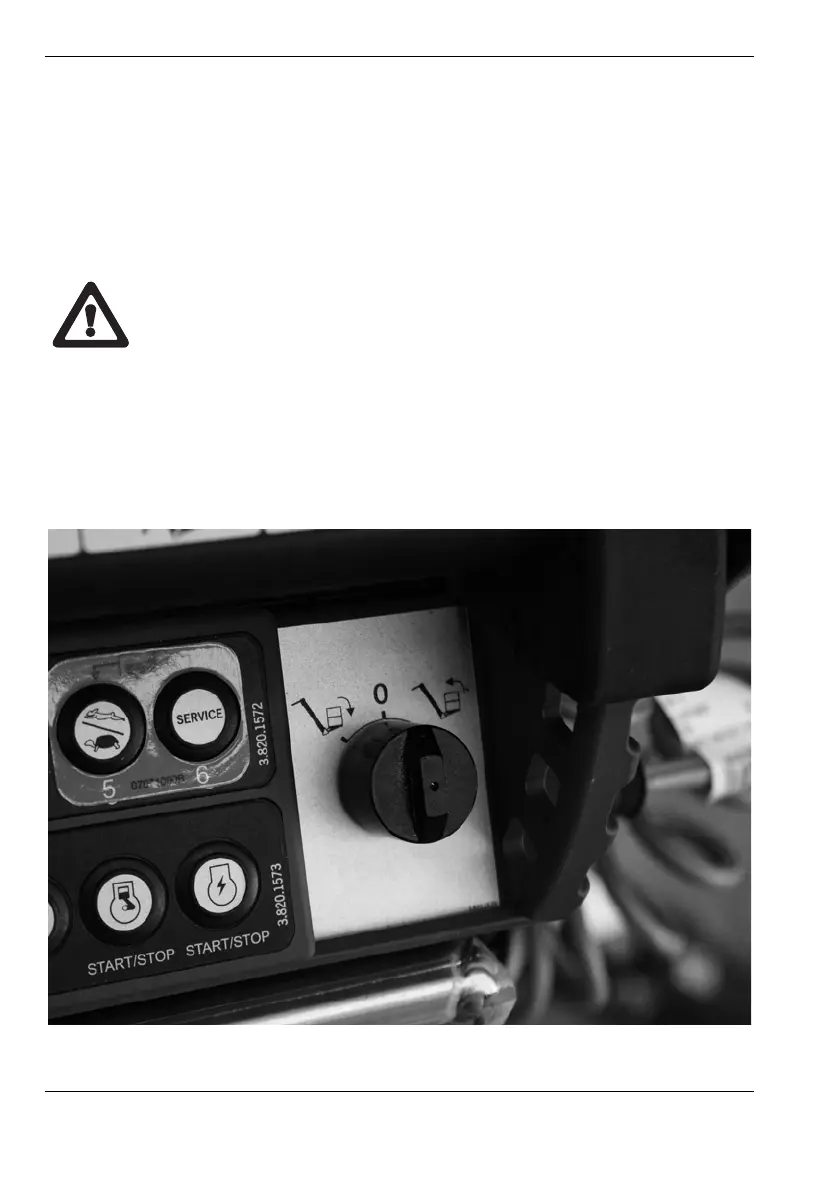

Fig.106 Levellingbasketkey
