BoomLiftModels X20JPLUS
INSTRUMENTSANDCONTROLS
MUX20JP021602
SkyGuard
TM
FunctionTest
Fromthebasketcontrolposition,testtheSkyGuard
TM
featurebysett ingupma‐
chineandoperatingthetelescopeoutfunctionsandthenactivatingtheSkyGuar‐
d
TM
sensor.Thetelescopeoutfunctionwillstop andthetel escopeinfunctionwill
operateforashortdurationandthebeeperwillsounduntiltheSkyGuard
TM
sen‐
soraredisengaged.
DisengagetheSkyGuard
TM
sensor,releasecontrol, pressandreleasetheemer‐
gencystop ontheremotecontrolinthebasket,make sure normal operation is
available.
IfSkyGuard
TM
remainsactivatedafterfunctionreversalorcutout,depressand
holdtheSkyGuard
TM
Overriden° 8remotecontrolbuttontoallownormaluseof
machinefunctionsuntiltheSkyGuard
TM
sensorisdisengaged.

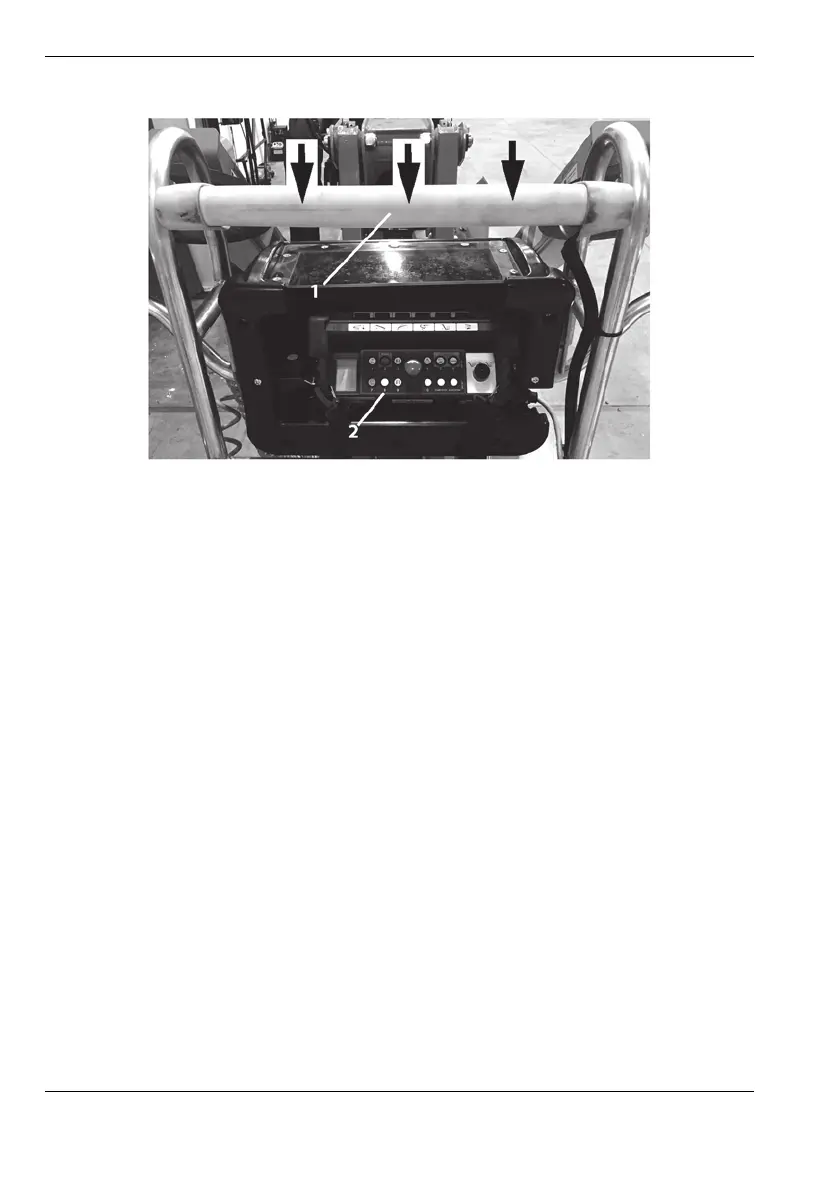

Fig.63 1‐SkyGuard™Sensor2‐SkyGuard™OverrideSwitch(buttonnumber8)
