13.3.2.Liftingthemachineusingropesorchains
Themachineisequippedwith4eyelets,positionedonthebase,allowingtolift
themachinethrough4ropesorchainsofsuitablelengthandcapacity.
Toproperly lifttheplatformitisnecessarytouseaslingbar ofadequatesizeand
features,wi
thadistancebetweenhooksfrom550to730mm.Theminimumca‐
pacityrequiredforeachrope,chainorslingusedmustbesufficienttoensurethe
supportofthewholestructuretobeliftedandtheirlengthmustensurethatthe
slingbarispositionedhigherthanthemachineandtha
titdoesnottouchthepla‐
tformduringtheliftingphases.The followingpicturesaretheguidelinesforma‐
chinelifting.

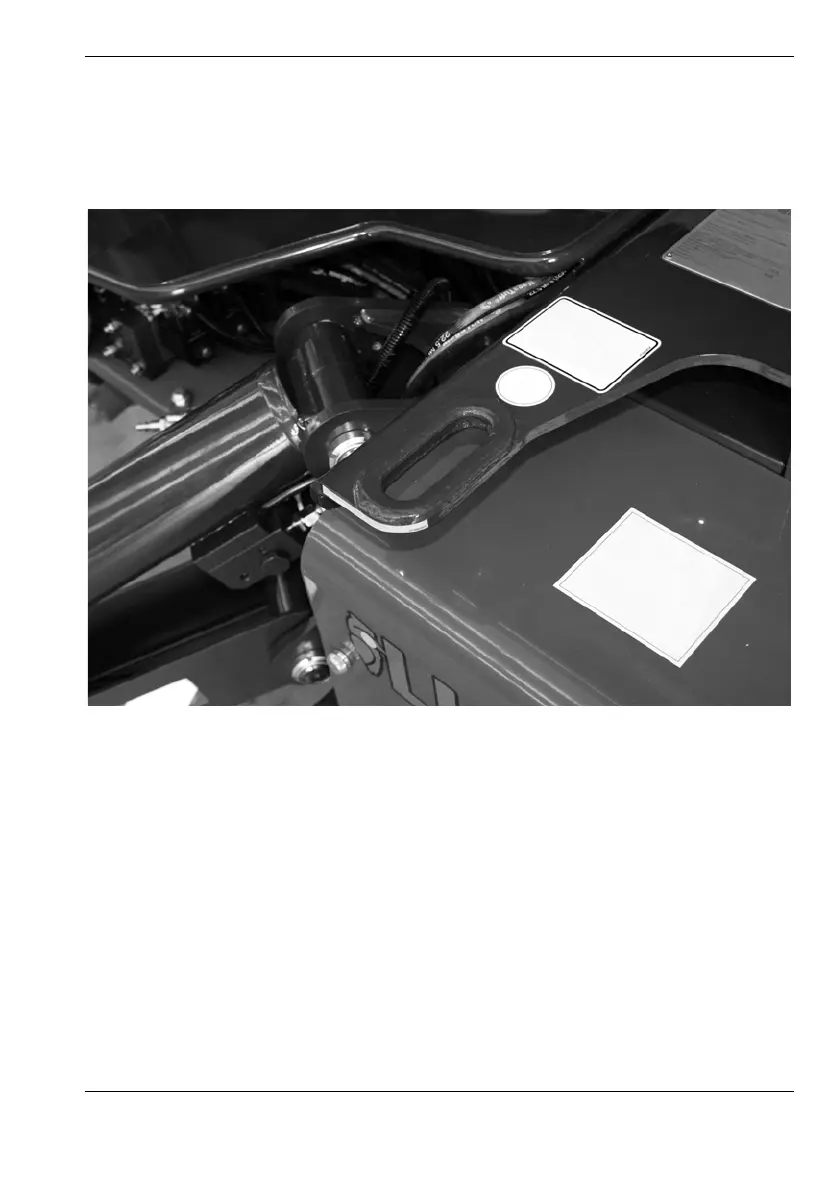

Fig.179 Ropesorchainsliftingpoints
