JLG X20JPLUS - Basket Load Sensor

SAFETYDEVICE
47
MUX20JP021602
BoomLiftModels X20JPLUS
8.8. BASKETLOADSENSOR
Theloadsensoronthebasketismadeupofabasketsupportwithtwoshaftsthat
onlyallowthe verticalmovementofthebasket.Thebasketsupportissupplied
bytheloadcellitself.Twostraingaugesarepositionedinsidethesensorpositio ‐
nedunderthe basket an
dconverttherelative  weightinsid ethebasket intoan
electricalsignal.Theelectricalsignalisthensenttotheelectronicboard,which
processesitandidentifiesanydangerousconditions.Theremotecontroldisplay
alwaysshowsthemaximumloadallowedaccordingtotheworkmode.Whenthe
maximumallowableloadisreached,aniconappearsonthere
mote controldi‐
splay,asoundsignalisemittedandallplatformmovementsaredisabled.Tore‐
storeplatformoperationtheexcessweightmustberemovedinordertoreturn
belowthemaximumallowableweight.

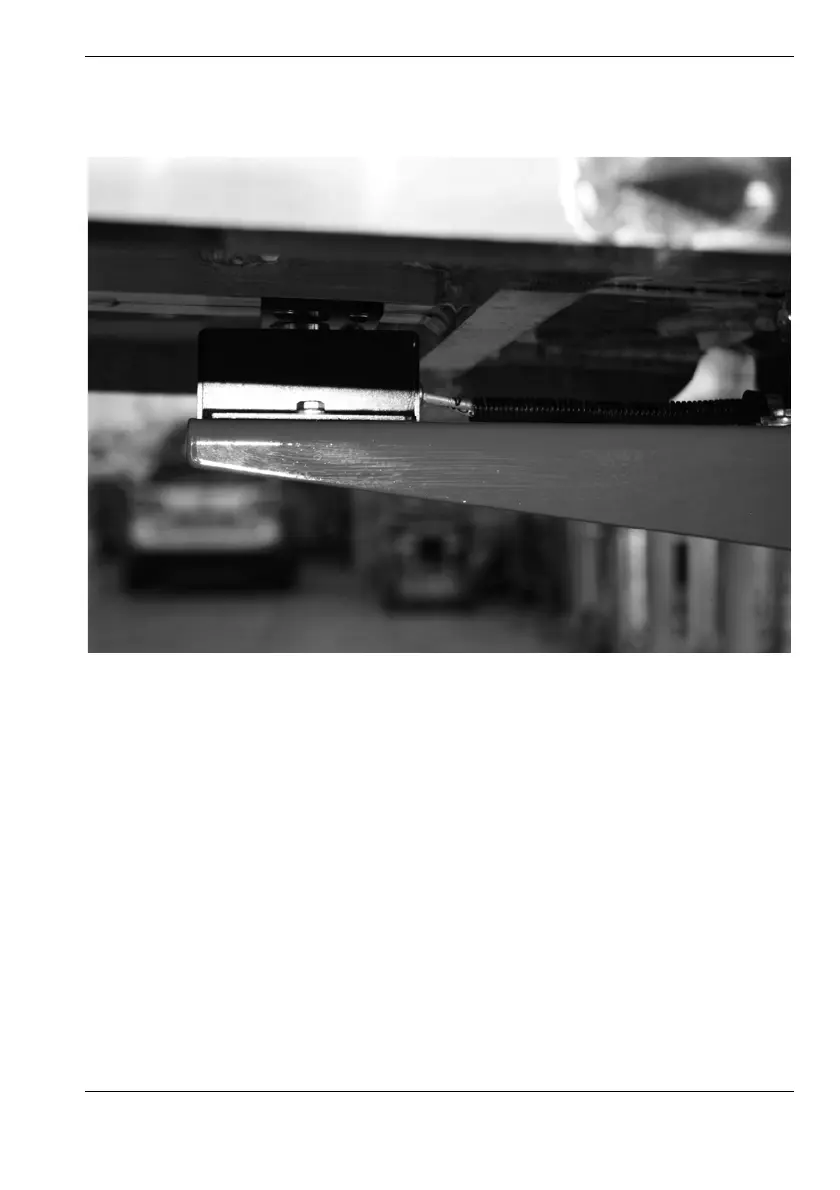

Fig.21 Basketloadsensor
