USINGTHEMACHINE
113
MUX20JP021602
BoomLiftModels X20JPLUS
Asdescentisduetogravity,theplatformandbasketcannotberotatedandthe
telescopicboomcannotbeextendedorretracted,thereforethebasketislowered
verticallyatadistancefromthecentreofrotationthatdependsontheconfigura‐
tionofthemachineatthetimewhentheemer
gencysituationoccurred.
2 Check the control by
means of icon 8 on the
display

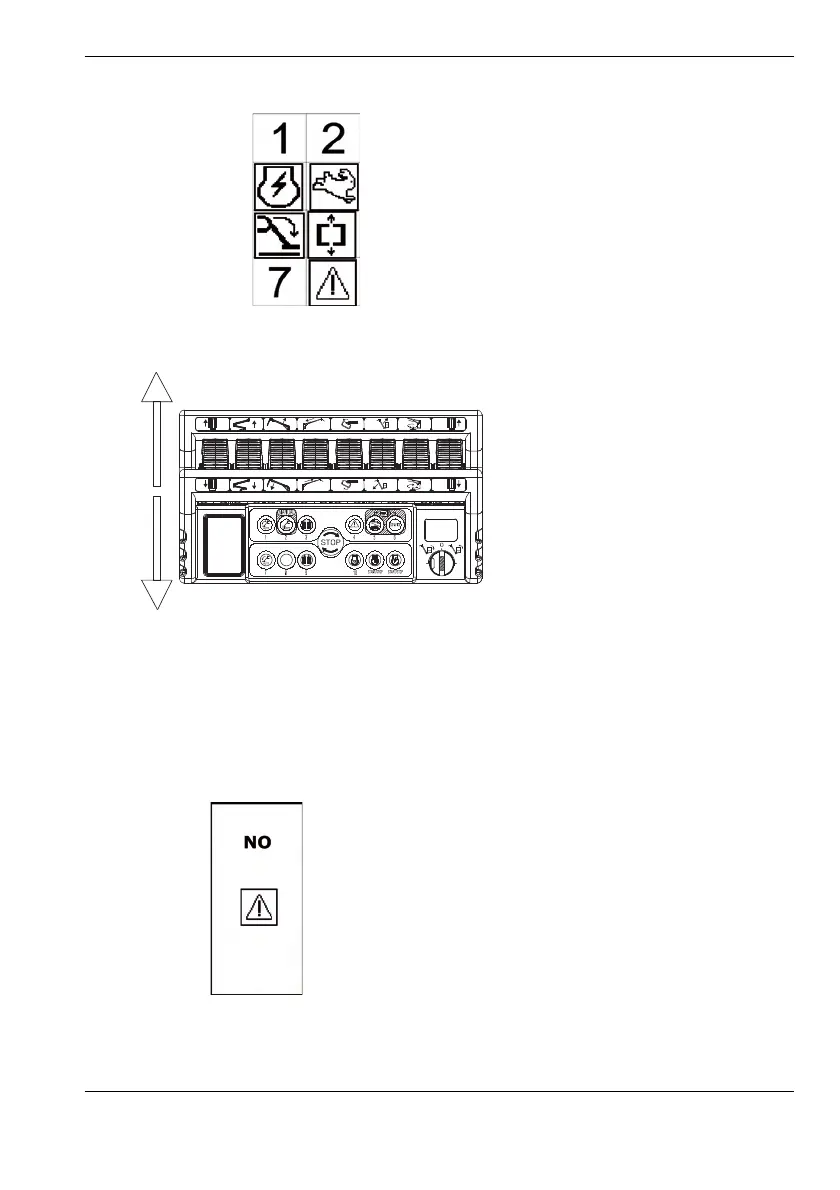

Fig.108 Displayicons
3 Activate the joystick re‐
lative to the arm that is
tobecloseduntilthede‐
sired height is reached
andreleasethebutton4
Fig.109 Joystickcontrols
Ifajoystickcorrespondingto amove‐
ment without emergency de
scent, is
activated an error icon will be shown
onthedisplaythatdisappearwhenthe
joystickisreleased.
1
2
5
4
3
9
8
7
6
A
B
