MUX20JP021602
BoomLiftModels X20JPLUS
3 Removethehandpump
protection cover,
whether there is. Move
the manual selector lo‐
catedonthehandpump
to the position corre‐
spondingtosideof ma‐
chine to move (right or
left);

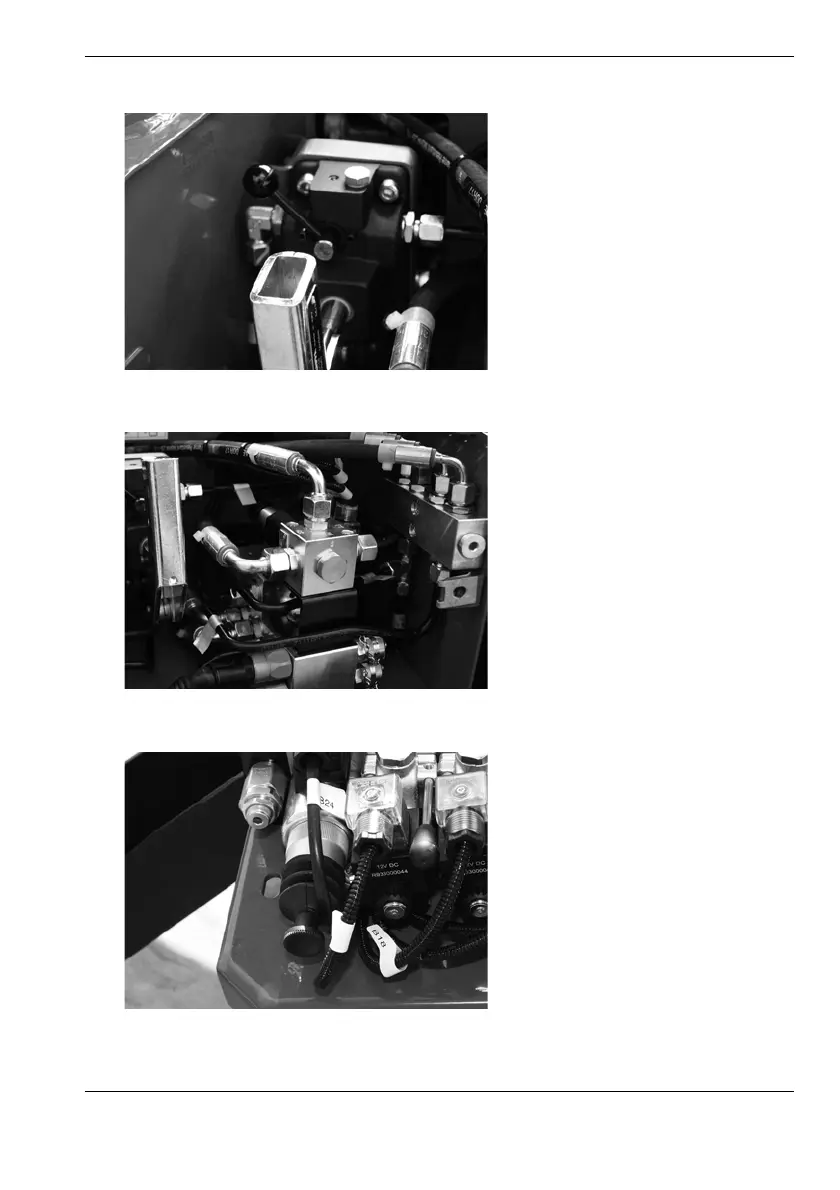

Fig.138 Handpumpmanualselector
4 Manuallyswitchtheae‐
rial‐tracked part switch
viathefuseinthecentr
e
ofthe magnet usingthe
corresponding hand
wheel;
Fig.139 Aerial‐trackedpartswitch
5 Activate oneofthe pro‐
portional valve moun‐
ted on the two
distributorsthroughthe
properdevices;
Fig.140 Knobproportionalvalve
