MAINTENANCE
145
MUX20JP021602
BoomLiftModels X20JPLUS
3 If you use the remote
control to the basket as
control device from the
ground connect the re‐
mainedfreecableinthe
basket to the connector
providedwiththeoptio‐
nal kit to use service
from the ground.
Otherwise, leave it con‐
nected to the main re‐
mote.

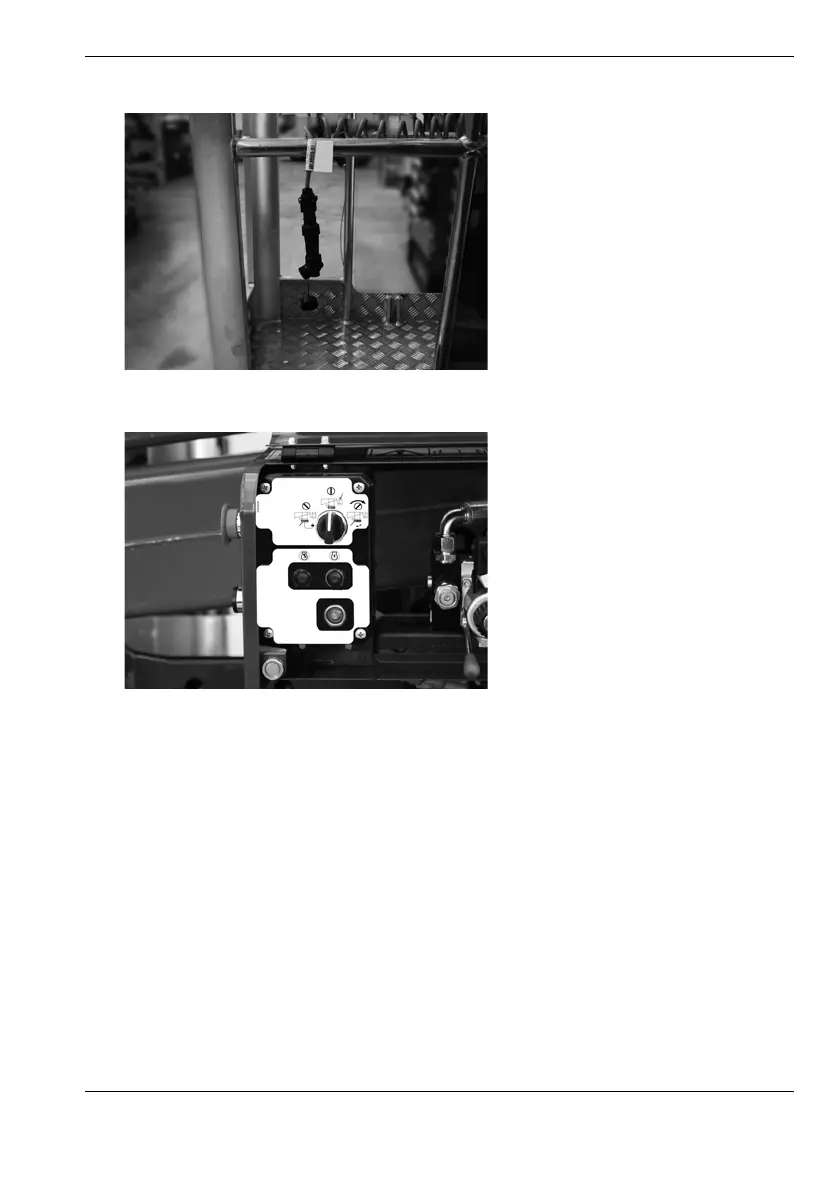

Fig.154 Serviceconnectoronthebasket
4 Select the command
from the gro
und acting
ontheselectorsw itchon
thecontrolbox.Thepo‐
sition rotated anti‐
clockwise switch
enables the  control sta‐
tion for maintenance if
the remote control is
connected to the
ground.
Fig.155 Basket/groundselector
