INSTRUMENTSANDCONTROLS
MUX20JP021602
Signalsthatoneoftheemergencystopbuttonsonthemachinehasnotbeenrele‐
ased.
Indicatesthatthebatterychargelevelisbelowtheminimumlimitallowed.Ifthis
messageappears,itisadvisabletorechargethebattery,eitherbykeepingthedie‐
selorpetrolengineon,orbyconnectingtothenetwork.
Signa
lsanerrorinthebatterymanagementsystemofLithiumversion.
ThemachinehasaCANBUSlineconnectionfault.
Afaultyorincorrectelectronicboard(card)hasbeenins talled,oralternativelyan
incorrectsoftwareversionhasbeenloaded.

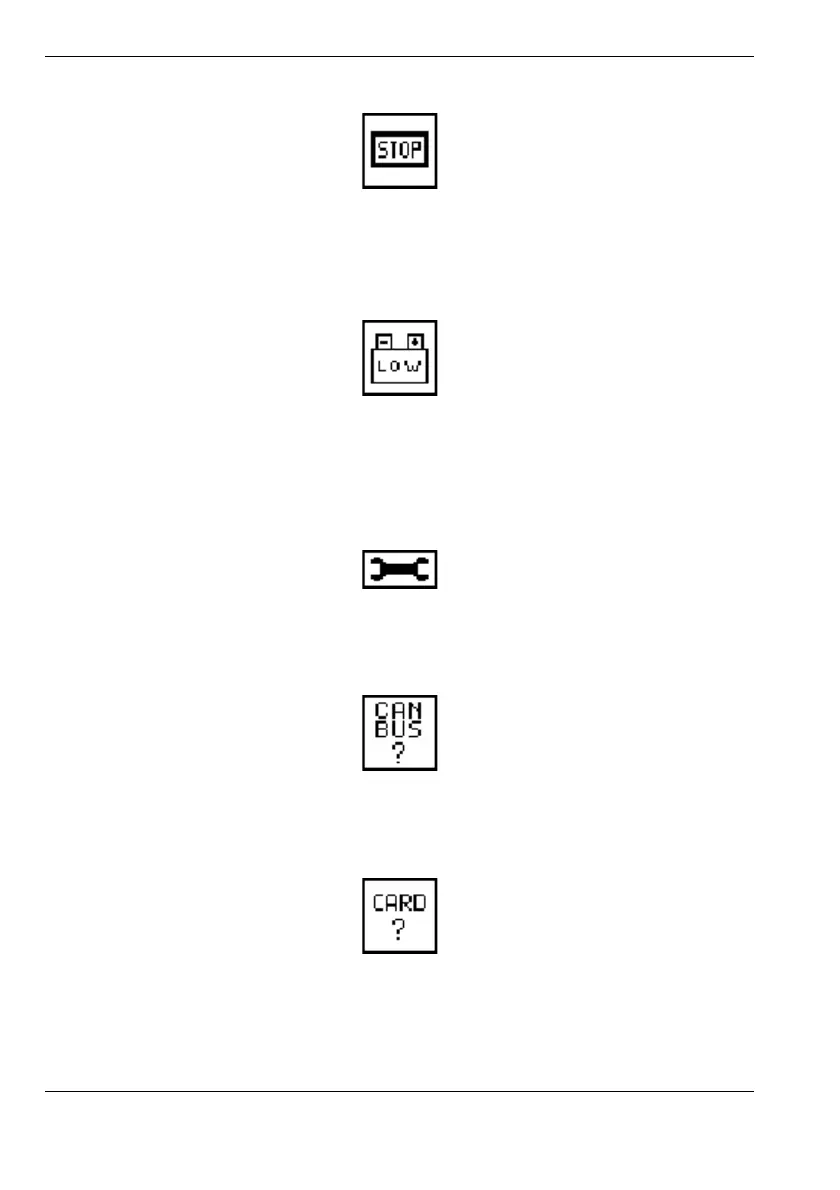

Fig.43 Emergencystoppressed
Fig.44 Lowbatterylevel
Fig.45 Lithiumerror
Fig.46 CANBUSerro
rcommunication
Fig.47 Cardfail
