EMERGENCYDEVICE
75
MUX20JP021602
BoomLiftModels X20JPLUS
Thispanelhousesthefoll owingcontrols:
•Threepositioncontrolforselectingthecontrolposition.

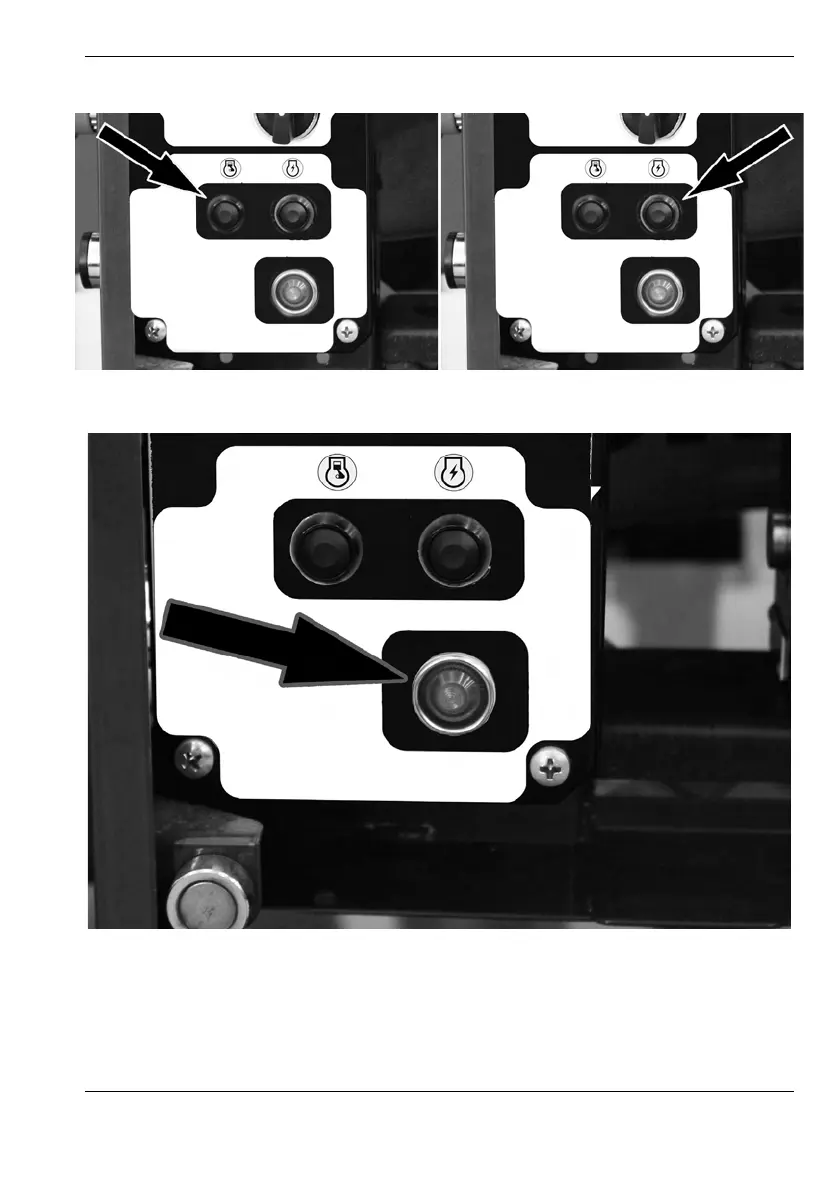

Fig.72 Enginestartbutton Fig.73 Electricmotorstartbutton
Fig.74 Aerialpartmovementsenabledlight
