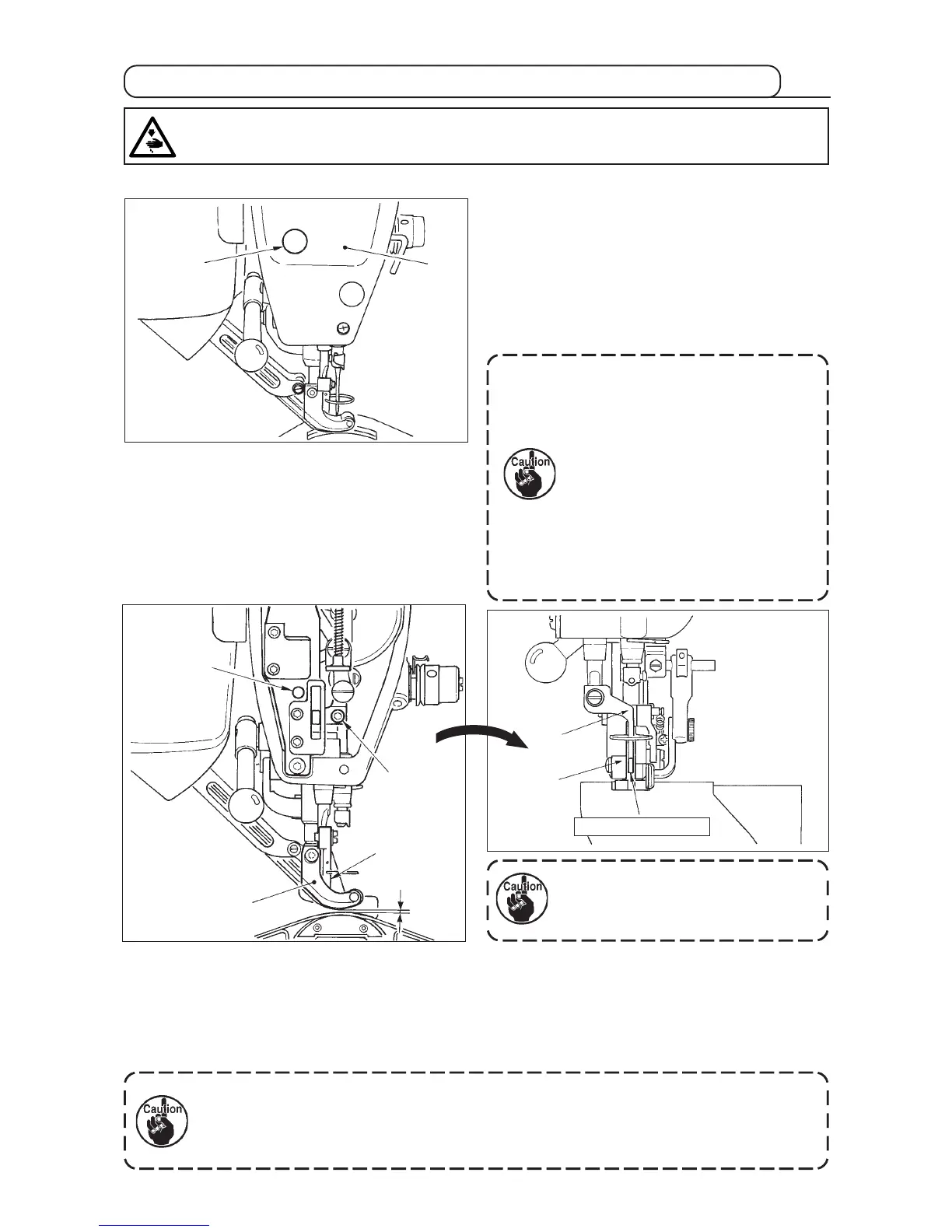

24-3 Adjusting the height of the walking foot and the presser foot
1
5
2
6
4
3
Be careful of parallel
4
3
(2) Adjusting the height of presser foot
1) Bring the needle bar to its lower dead point.
2) Remove face plate 5.
3) Loosen presser foot bar bracket clamp screw 6.
4) Move upward presser foot 4 in the range of 0.1 to 0.5 mm and tighten screw 6.
1. Clearance between top and bottom
feed belts (dimension A) is 0.1 to
1.0 mm. If the clearance is more
than the specified dimension,
components come in contact with
each other.
2. When tightening screw 2, be
careful of the parallel of walking foot
3 and presser foot 4. Bend of
material or feed trouble will be
caused.
1) Bring the needle bar to its upper dead point.
2) Remove stopper plug 1.
3) Insert a hexagonal wrench key into the hole from
which the stopper plug has been removed, and
loosen walking foot bar bracket clamp screw 2.
4) Move walking foot 3 up or down in the range of
0.1 to 1.0 mm and tighten screw 2.
(1) Adjusting the height of walking foot
When the clearance becomes larger
than the specified value, feed force is
deteriorated. So, be careful.
1. Clearance between the bottom surface of presser foot and the needle hole guide has
been factory-adjusted to 0.1 mm at the time of delivery.
2. When the clearance becomes larger than the specified value, feed force is deteriorated.
So, be careful.
WARNING :
Turn OFF the power before starting the work so as to prevent accidents caused by abrupt start of the
sewing machine.
