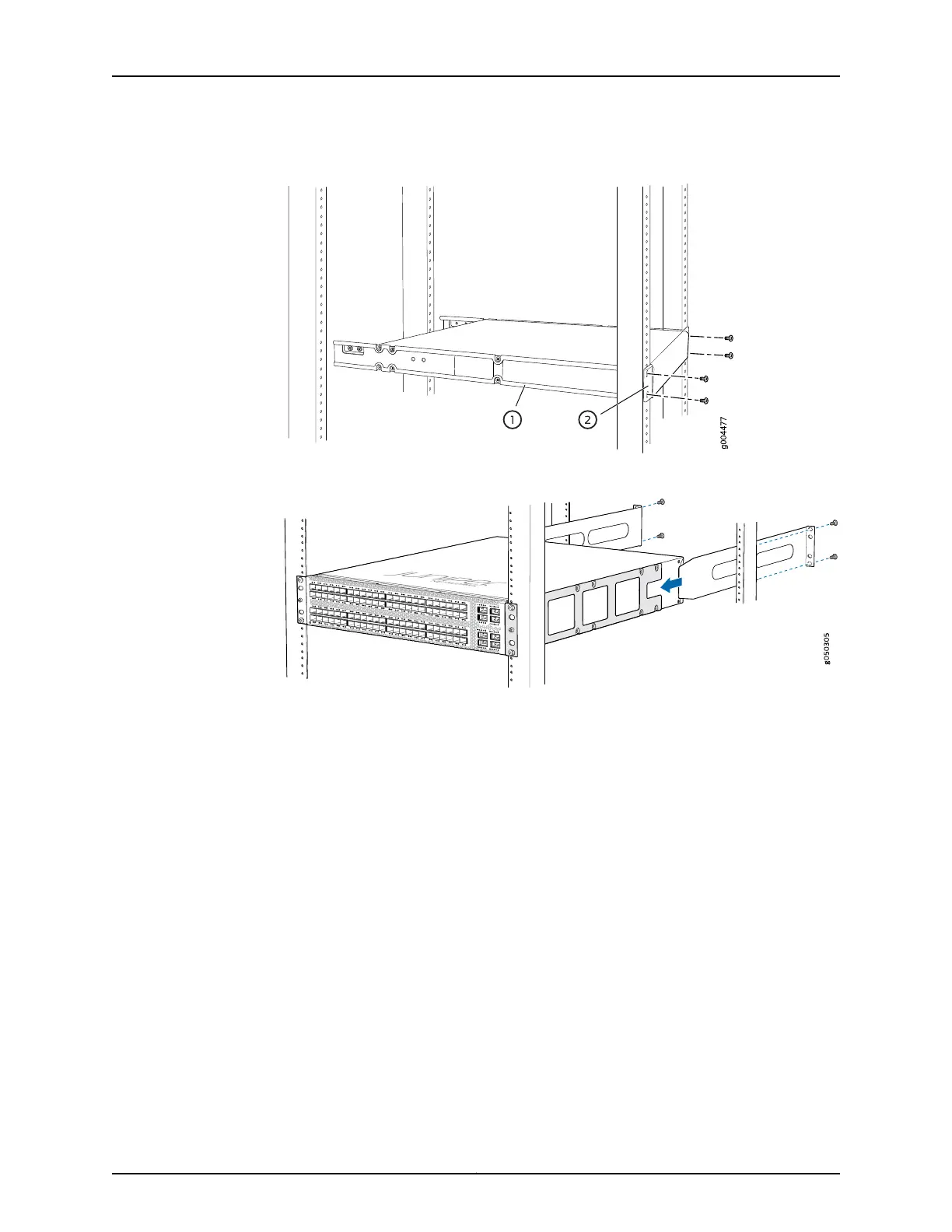

Figure 31: Attach 1 U Router to Rack
Figure 32: Slide Mounting Rail onto the ACX5096 Rear Mounting Blade
8. Continue to supportthe routerwhilesliding therearmounting-blades into thechannel
of the side mounting-rails and securing the blades to the rack. Use the four mounting
screws (and cage nuts and washers if your rack requires them) to attach each blade
to the rack. Use eight front-mounting screws for the ACX5096. Tighten the screws.
See Figure 33 on page 108.
107Copyright © 2015, Juniper Networks, Inc.
Chapter 10: Installing the Router
