Fan Module LED on an ACX5000 Router

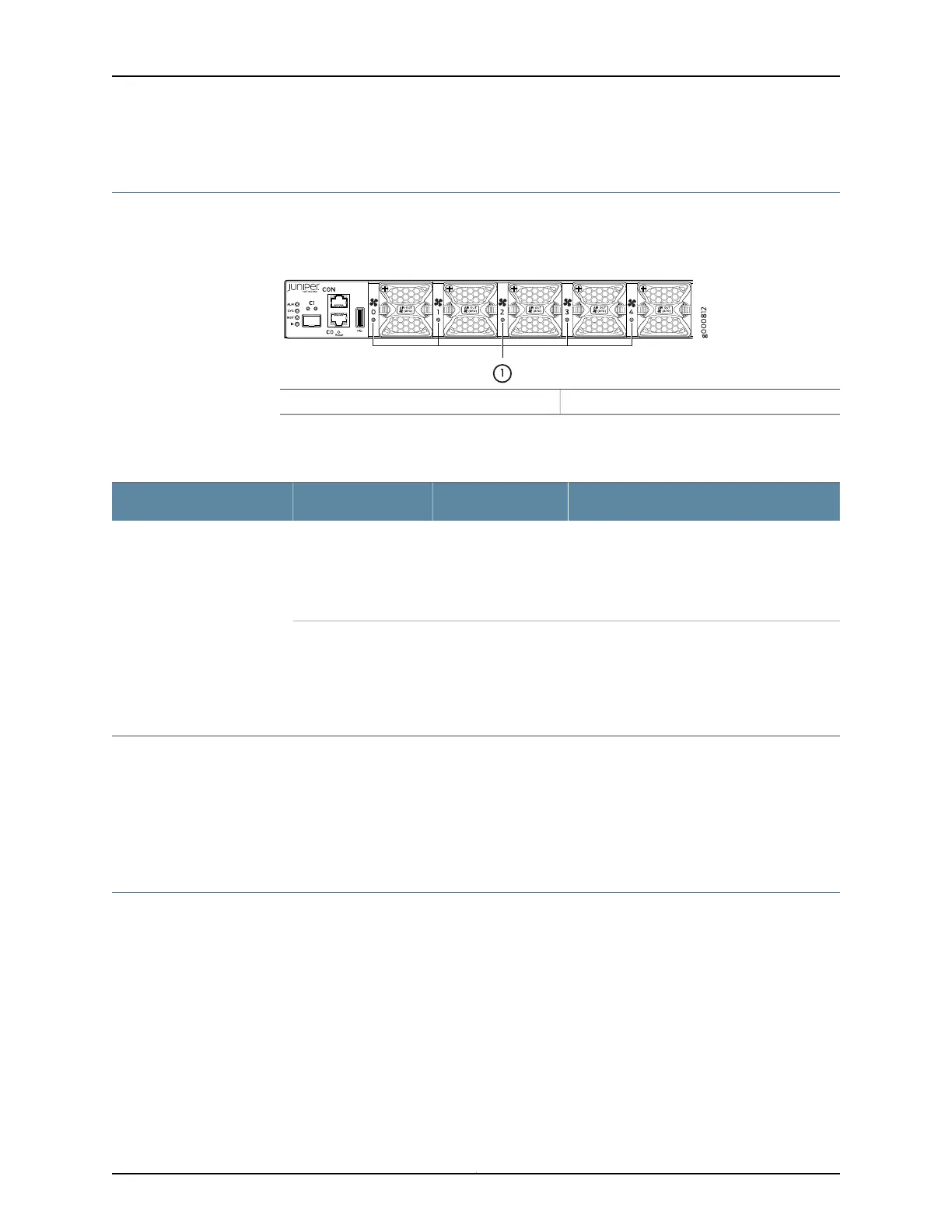

Figure 13 on page 29 shows the location of the LED next to the fan module.
Figure 13: Fan Module LED in an ACX5000 Router
1— Fan LED
Table 13 on page 29 describes the function of the fan tray LED.
Table 13: Fan Tray LED in an ACX5000 Router
DescriptionStateColorName
The fan module is operating normally. The
system has verified that the module is
engaged, that the airflow is in the correct
direction, and that the fan is operating
correctly.
On steadilyGreenFan
An error has been detected in the fan module.
Replace the fan module as soon as possible.
Either the fan has failed or it is seated
incorrectly. To maintain proper airflow through
the chassis, leave the fan module installed in
the chassis until you are ready to replace it.
BlinkingAmber
Related
Documentation
Cooling System and Airflow in an ACX5000 Router on page 33•
• Installing a Fan Module in an ACX5000 Router on page 133
• Removing a Fan Module from an ACX5000 Router on page 134
AC Power Supply LEDs on an ACX5000 Router
Figure 14 on page 30 shows the location of the LEDs on the power supply.
