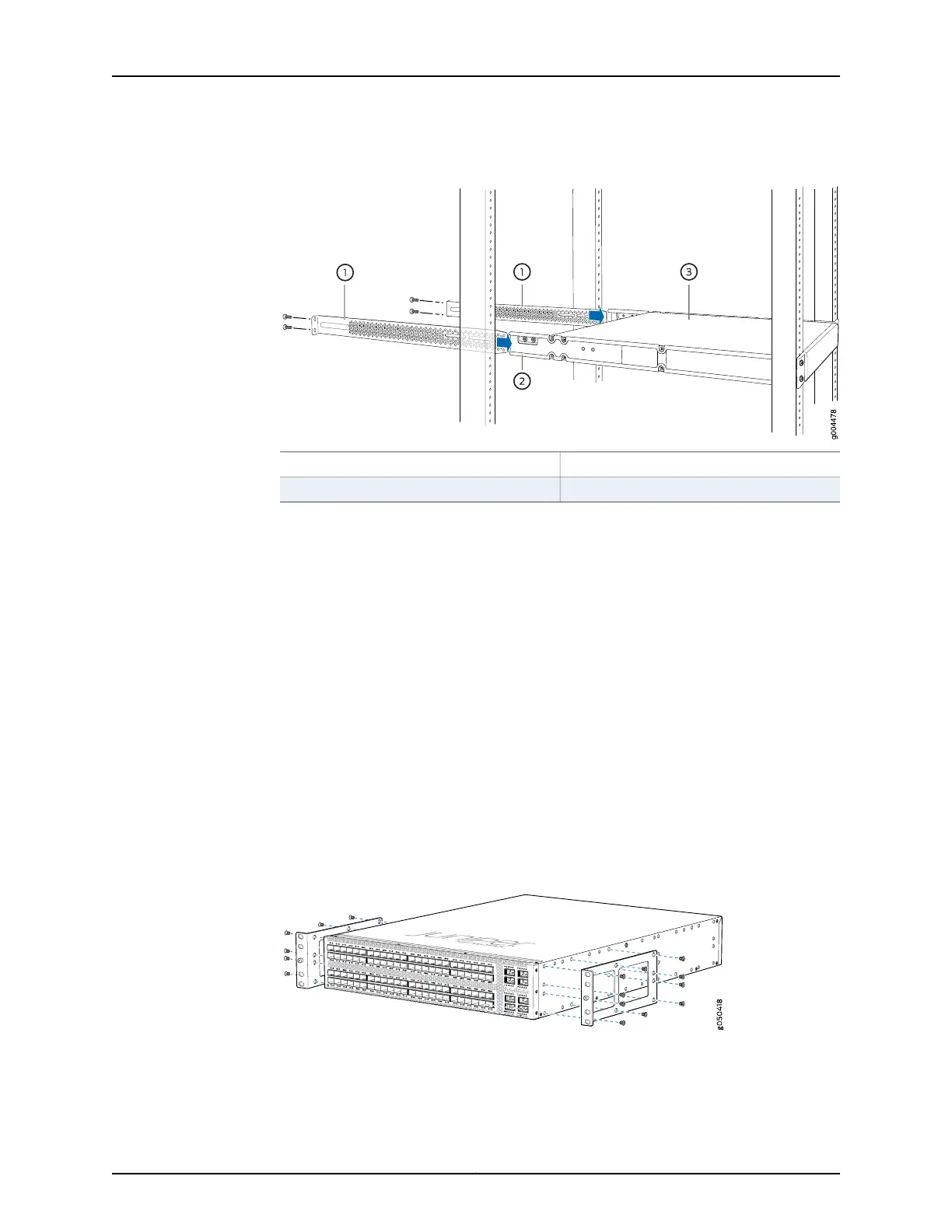

Figure 33: Slide Mounting Blades into 1 U Mounting Rail
3—1— Router chassisRearmounting-blades
2—Side mounting-rails
9. Ensure that the router chassis is level by verifying that all the screws on the front of
the rack are aligned with the screws at the back of the rack.
Two Post Procedure
You can center mount a ACX5096 on two posts of a 19-in. rack or cabinet by using the
short mounting brackets provided with the router. Other product SKUs of the ACX5000
are not recommended for two post installation.
To mount the router on two posts in a rack using the provided mounting kit:
1. Attach the ESD grounding strap to your bare wrist and to a site ESD point.
2. Decide whether the Field Replaceable Unit (FRU) end of the router or the port end is
to be placed at the front of the rack. Position the router in such a manner that the AIR
OUT labels on components are next to the hot aisle.
3. Align the tenmounting holes on the short mounting bracket with one of the three sets
of corresponding holes alongthe side of the router chassis . See Figure 34 on page 108.
Figure 34: Attaching a Two-Post Mounting Bracket to ACX5096 Router
4. Attach the mounting bracket to the ACX5096 using eight mounting screws (and cage
nuts and washers if your rack requires them).
Copyright © 2015, Juniper Networks, Inc.108
ACX5048 and ACX5096 Universal Access Router
