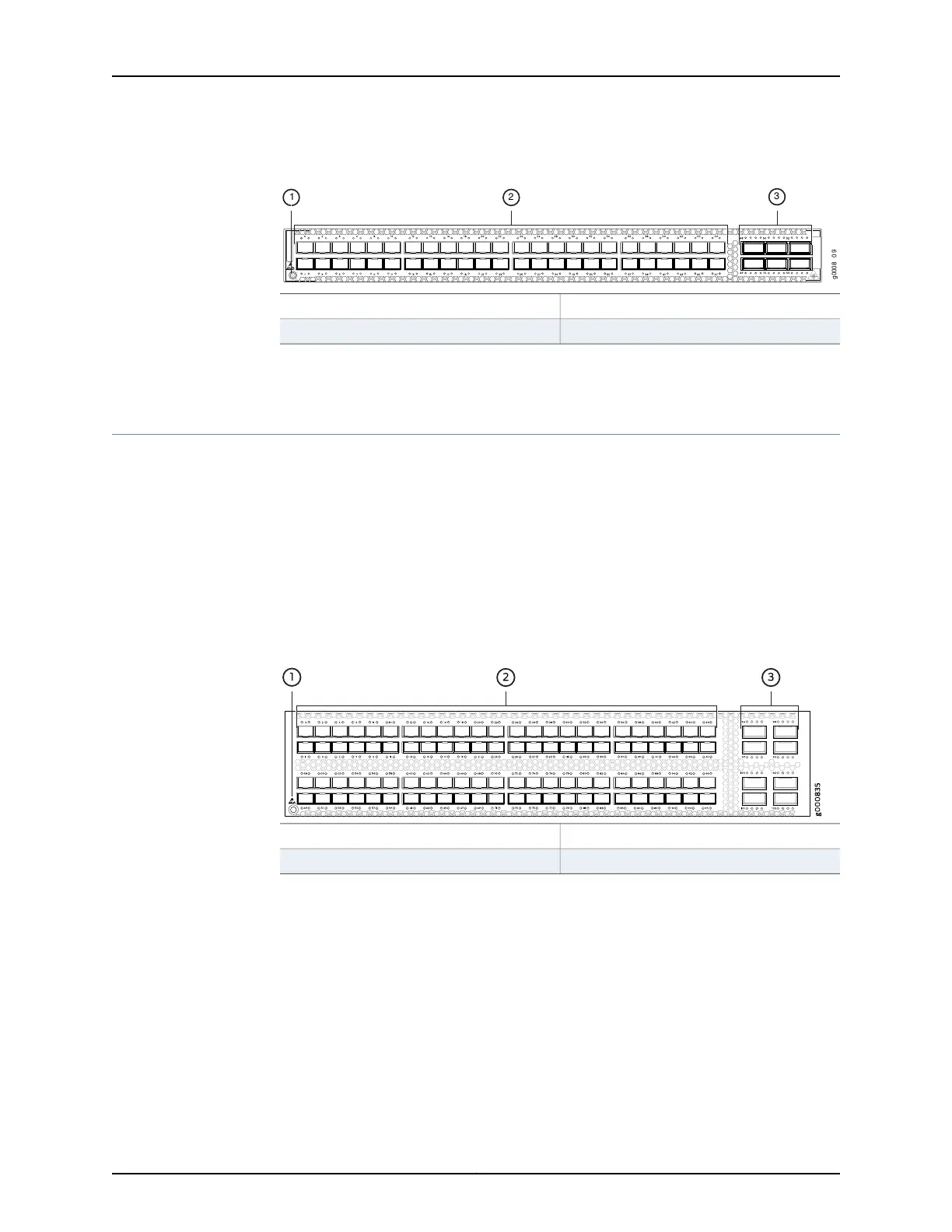

Figure 9: ACX5048 Router Port Panel
g0008 0 9
1 2
3
3—1— 40 Gigabit Ethernet ports (6)Electrostatic Discharge (ESD) terminal
2—10 Gigabit Ethernet ports (48)
Related
Documentation
Access Port and Uplink Port LEDs on an ACX5000 Router on page 26•
Port Panel of an ACX5096 Router
The port panel of the ACX5096 router consists of 96 small form-factor pluggable plus
(SFP+) and 8 quad small-form factor pluggable plus (QSFP+) ports. Physical ports(0
through 95) support 10 Gbps SFP+ transceivers and normally are configured as access
ports. The eight 40-Gigabit ports (96 through 103) support QSFP+ transceivers and are
normally configured as uplinks or Virtual Chassis ports (VCPs). Although the 104 physical
ports of the ACX5096 would map to 128 logical ports using channelization, only 104
logical ports are supported.
Figure 10 on page 21 shows the port panel of a ACX5096 router.
Figure 10: ACX5096 Router Port Panel
3—1— 40 Gigabit Ethernet ports (8)Electrostatic Discharge (ESD) terminal
2—10 Gigabit Ethernet ports (96)
This topic describes:
•
Router Ports on page 21
•
Channelizing Interfaces on page 22
Router Ports
The ACX5096 ports, (0 through 95) support:
•
1 Gbps SFP transceivers
•
10 Gbps SFP+ transceivers
