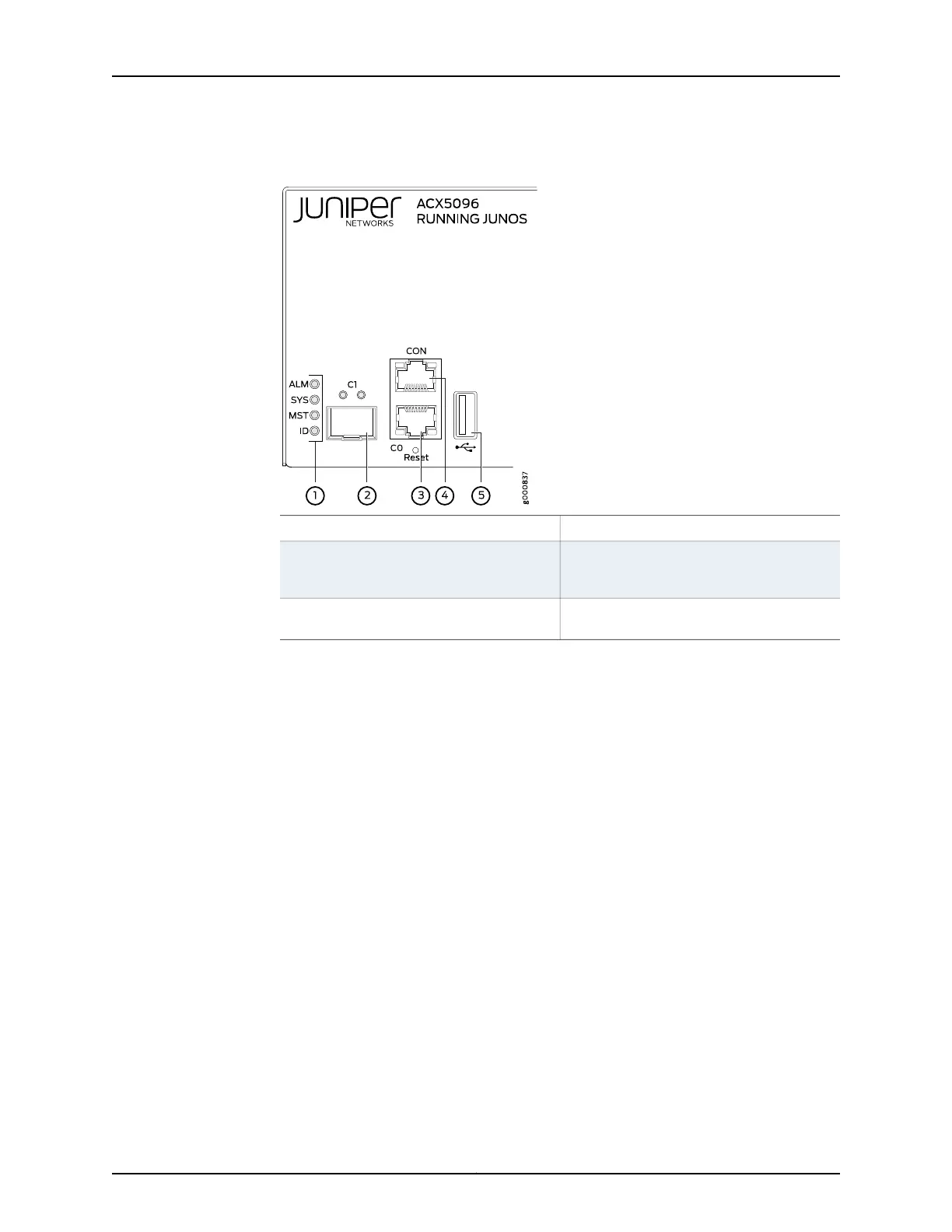

Figure 8: Management Panel Components on ACX5096
4—1—
RJ-45 console port (C0N) )
Status LEDs
5—2— USB port
em1–SFP management Ethernet port (C1)
Cage (socket for either 1 GbE copper SFP or
fiber SFP)
3—em0–RJ-45 (1000 Base-T) management
Ethernet port (C0)
The management panel consists of the following components:
•
Status LEDs
•
ALM–Alarm
•
Unlit indicates the router is halted or that there is no alarm.
•
Red indicates a hardware fault, such as a power failure or a system shutdown due
to system over-heating.
•
Amber indicates a major or minor alarm.
•
SYS–System
•
Unlit indicates the router is powered off or halted.
•
Solid green indicates that Junos OS for ACX Series is loaded on the router.
•
ID–Identification or beacon
•
Unlit indicates the beacon feature is not enabled.
•
Blinking blue indicates the beacon feature is enabled. This feature is enabled using
the request chassis beacon command.
•
Router product number
•
Management Ports C0 and C1
