DCE80-100E
Technical Handbook
Engine TWD731VE
Description
4
P.Group 30
TDCE01
04GB
TWD731VE
1 2
3
4
5
6 7
8910 11 12 13
25

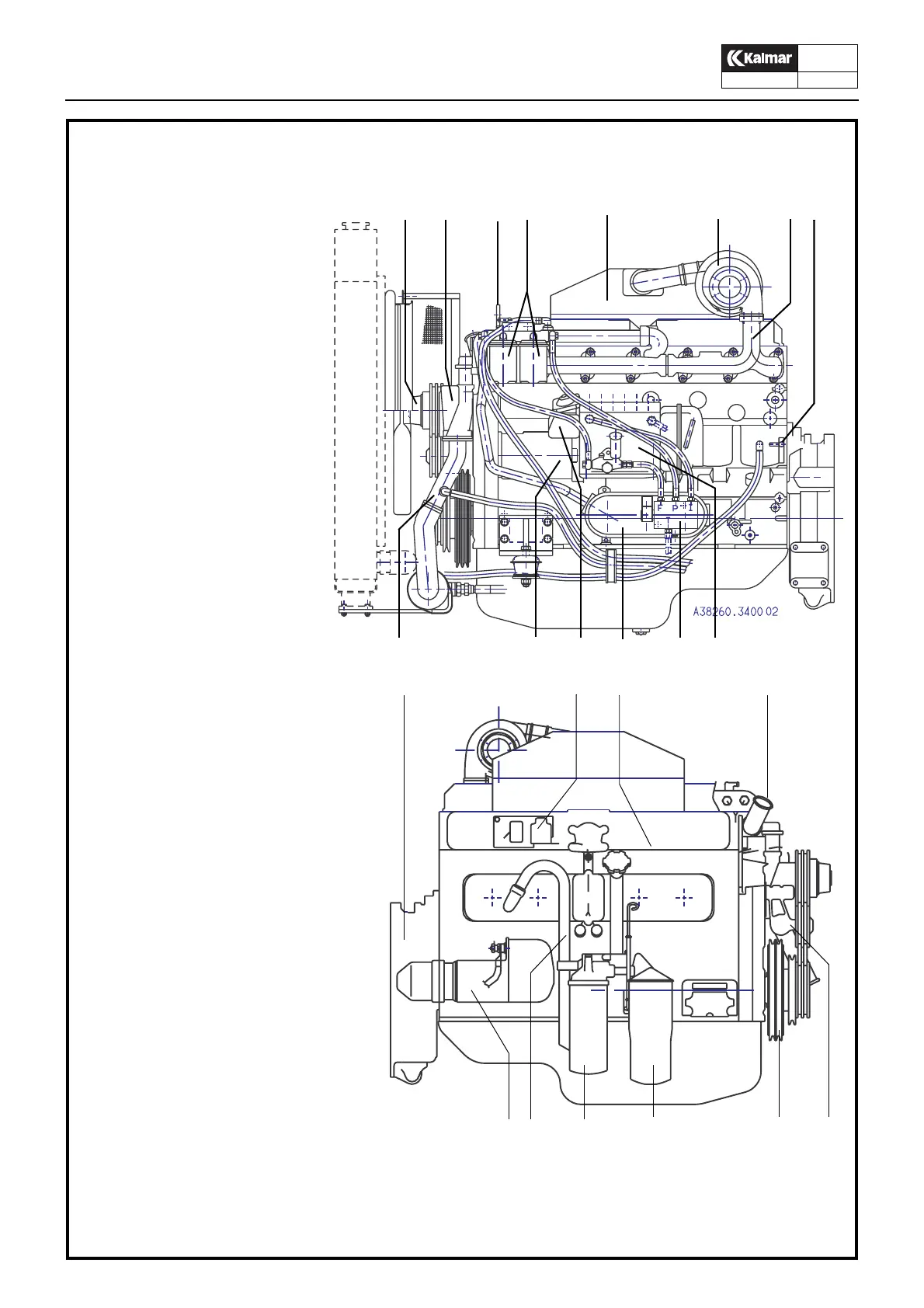

Engine Volvo TWD731VE
1. Fan hub
2. Gear driven coolant pump
3. Lift eyelet
4. Twin fuel filters of throw-away type
5. Turbo-charger
6. Air cooled exhaust manifold
7. Lift eyelet
8. Coolant pipe, inlet
9. Pump coupling guard
10. Smoke limiter
11. Oil cooler
12. Fuel shut-off valve
13. Injection pump
14. Relay for inlet manifold heater
15. Cable iron
16. -
17. Coolant pipe, outlet
18. Flywheel housing SAE 2
(Adaptor for SAE3)
19. Starter motor
20. Crankcase ventilation
21. Full-flow filter of spin-on type
22. By-pass filter of spin-on type
23. Vibration damper
24. Automatic belt tensioner
25. Intercooler
KL 1645
14 15
17
18
19 20 21 22 23 24
