DCE80-100E
Technical Handbook
SUPERVISION
Electrical system
10
P.Group 20
TDCE01
04GB

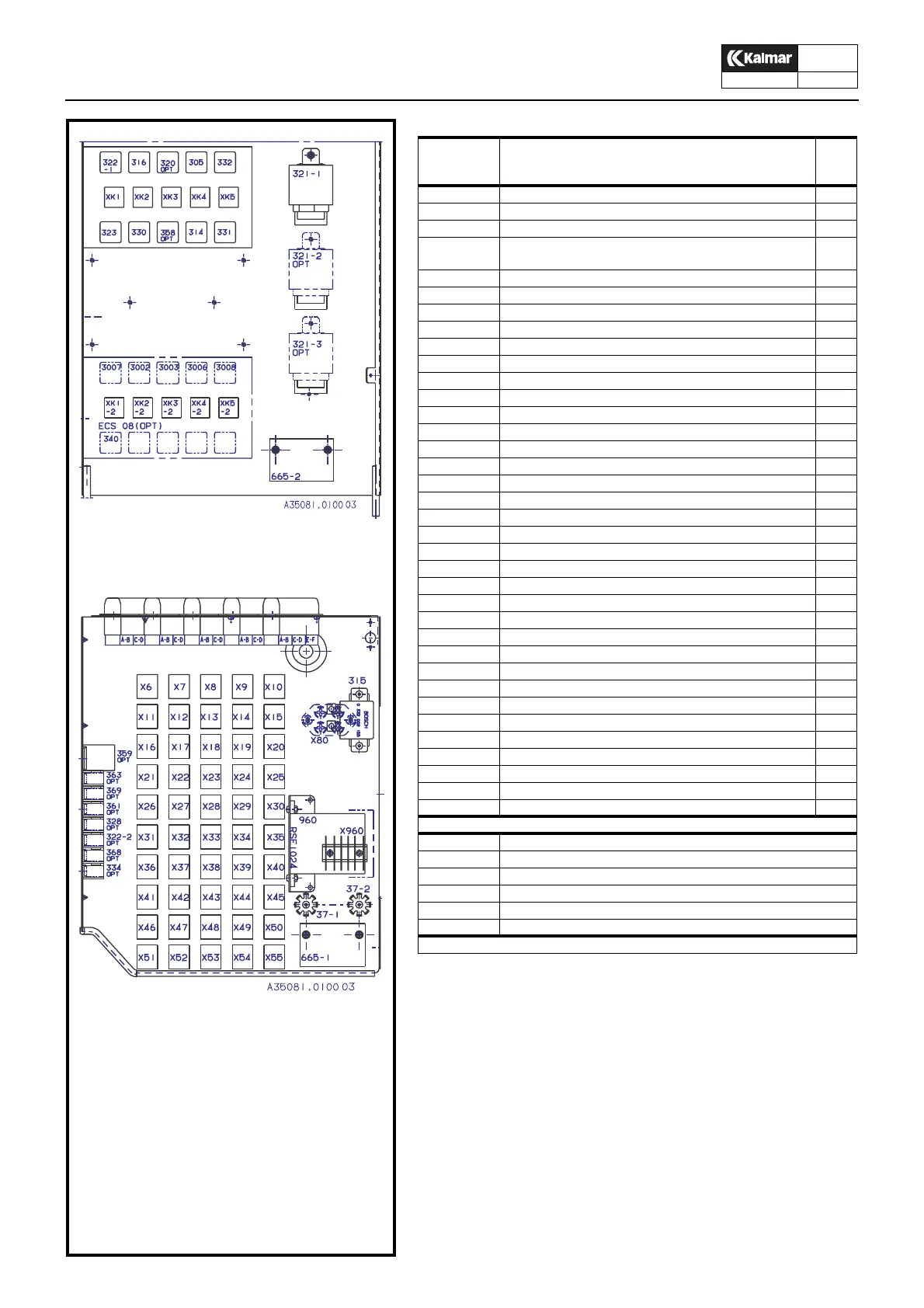

Sockets in electrical central
Socket
No.
Destination No.
of
pins
XK1-XK5 Internally electrical central 9
X6-X7 Right instrument panel, indicating lamps 9
X8 Instruments 9
X9-X10 Left instrument panel, switches for driving and
working lights
9
X11-X12 Left instrument panel, other switches 9
X13 Gear lever 9
X14-X15 Multi function lever 9
X16 Starting key 9
X17 Switch, windscreen wipers 9
X18 Indicating lamps, attachment 9
X19 ECS-terminal 1) 9
X20 Driving lights, left front 9
X21 Driving lights, right front 9
X22 Driving lights, left rear 9
X23 Driving lights, right rear 9
X24-X25 Connector, roof 9
X26 Connector, chassi 9
X27 Windscreen wiper, rear 9
X28 Heating fan, windscreen wiper front 9
X29 Horn, compressor for air operated seat 9
X30 Sensors under cab 9
X31-X34 Engine, gearbox 9
X35 Control motor, accelerator (ECS) 1) 9
X36-X37 ECU 1 1) 9
X38 Accelerator pedal (ECS) 1) 9
X39 ECU 1 1) 9
X40-X41 ECU 1 1) 9
X42-X44 Armrest, steering valve (ECS m04/06) 1) 9
X45 Chassis front 9
X46 Chassis attachment 9
X47 Central lubrication 1) 9
X48-X52 ECU 4 (ECS elservo m08) 1) 9
X53-X55 Option 9
X80 Electrical central, main connector 9
X81 Chassis front 19
X82 Carriage 7
Ground sockets
37-1, -2 Electrical central
37-5 Chassi
37-6 Engine
37-7 Cab
37-8 Cab, roof
37-10 Attachment
1) Optional equipment
A
B
