Kalmar DCE80-100E - Check and Lubrication of Brake Pedal

DCE80-100E
Technical Handbook
Operator’s cab
Service
9
P.Group 10
TDCE01
04GB
Check and lubrication of brake pedal
(every 1000 hours)
1. Check and tighten the locking screws 3, so that the brake
pedal is securely fitted in the console.
2. Lubricate the brake pedal shaft through the nipples 2.

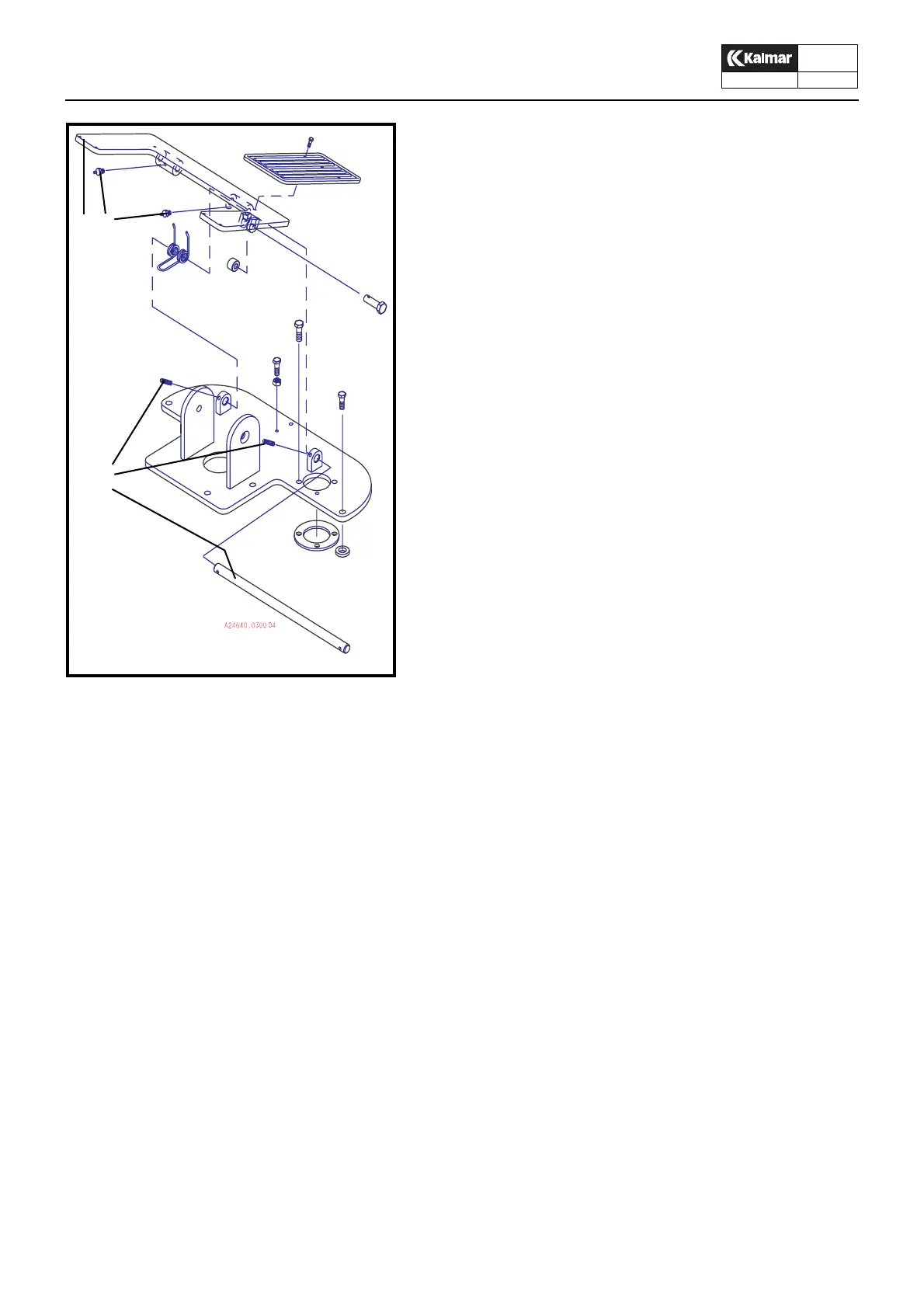

1. Brake pedal
2. Lubricating nipple
3. Locking screw
4. Shaft
1
2
3
4
