DCE80-100E
Technical Handbook
Main hydraulics
Description
13
P.Group 70
TDCE01
04GB
Tilting
The two tilting cylinders enable the mast to be tilted 3° forward
and 3° to the rear. (Optional 2°/3° or 3°/6°)
In each of the return lines is a valve which provides counter-pres-
sure to avoid inadvertent forward tilt, which would otherwise oc-
cur in unrestricted flow in the forward tilt mode.

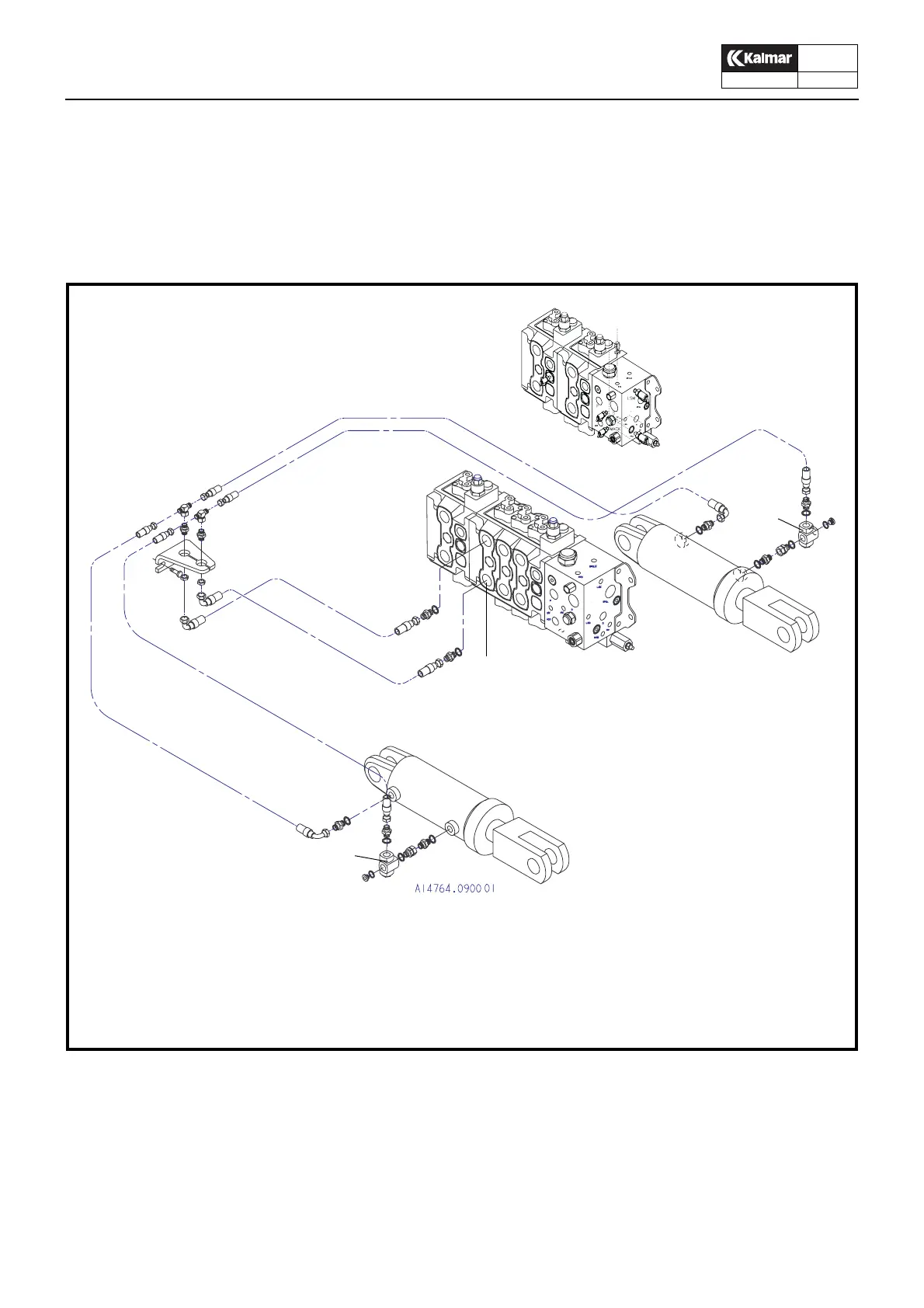

1. Control section, TILT
2. Tilting cylinder
3. Counter pressure valve
The numbers correspond to the hydraulic diagram
A = System with separat side-lift hydraulics
17. Control valve, TILT
28. Tilt cylinder
29. Counter pressure valve
28
28
29
29
17
Tilting function
KL1834
A
