Changing the drive axle oil
1. Drive the truck forward until the oil drain plug on one of the
wheel hub reductions is at its lowest point of travel.
2. Remove the oil plug and drain the oil and refit the plug.
3. Repeat the procedure on the other wheel.
4. Remove the drain plug from the underside of the differential
and drain the oil. Refit and tighten the drain plug.
5. Drive the truck forward so that the mark at the filling hole hub
is horisontal.
6. Fill the hub reduction with oil and refit the plug.
Volume: See specifications.
7. Repeat for next wheel.
8. Remove the level plug from the differential and fill the differ-
ential with oil. Refit an tighten the leel plug.
Volume: See specifications.
9. Check oil level an refill as necessary.

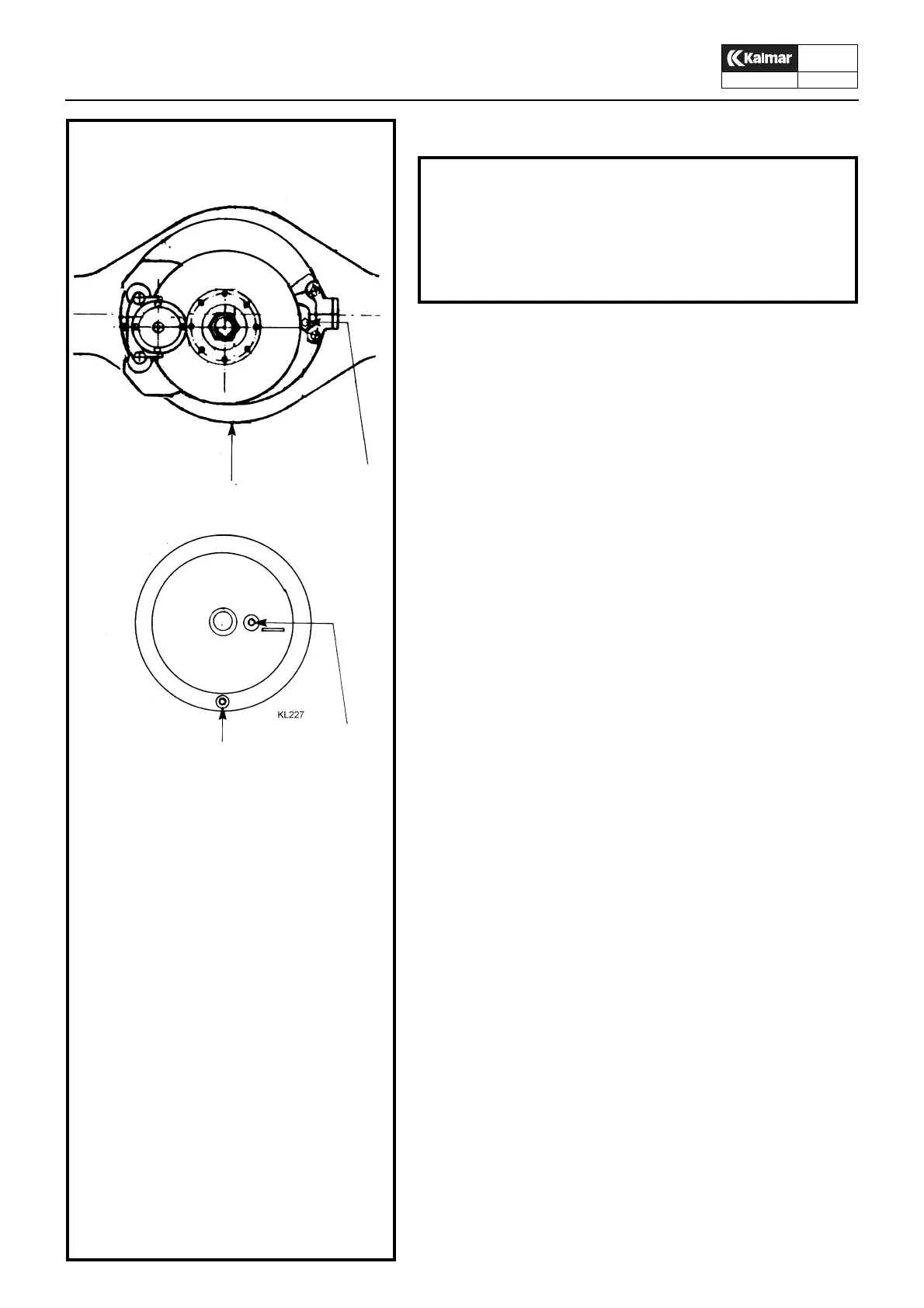

Drive axle oil
1
2
3
2
3
4
1. Differential
2. Drain
3. Fill up/level
4. Hub
IMPORTANT!
To assure that the wheel ends of planetary axles with a
common wheel end/housing bowl oil level are initially
lubricated, fill each wheel end directly with oil before ve-
hicle is put back into operation. DO NOT FILL THE AXLE
THROUGH THE DRIVE UNIT OR DIFFERENTIAL HOUS-
ING ONLY.
