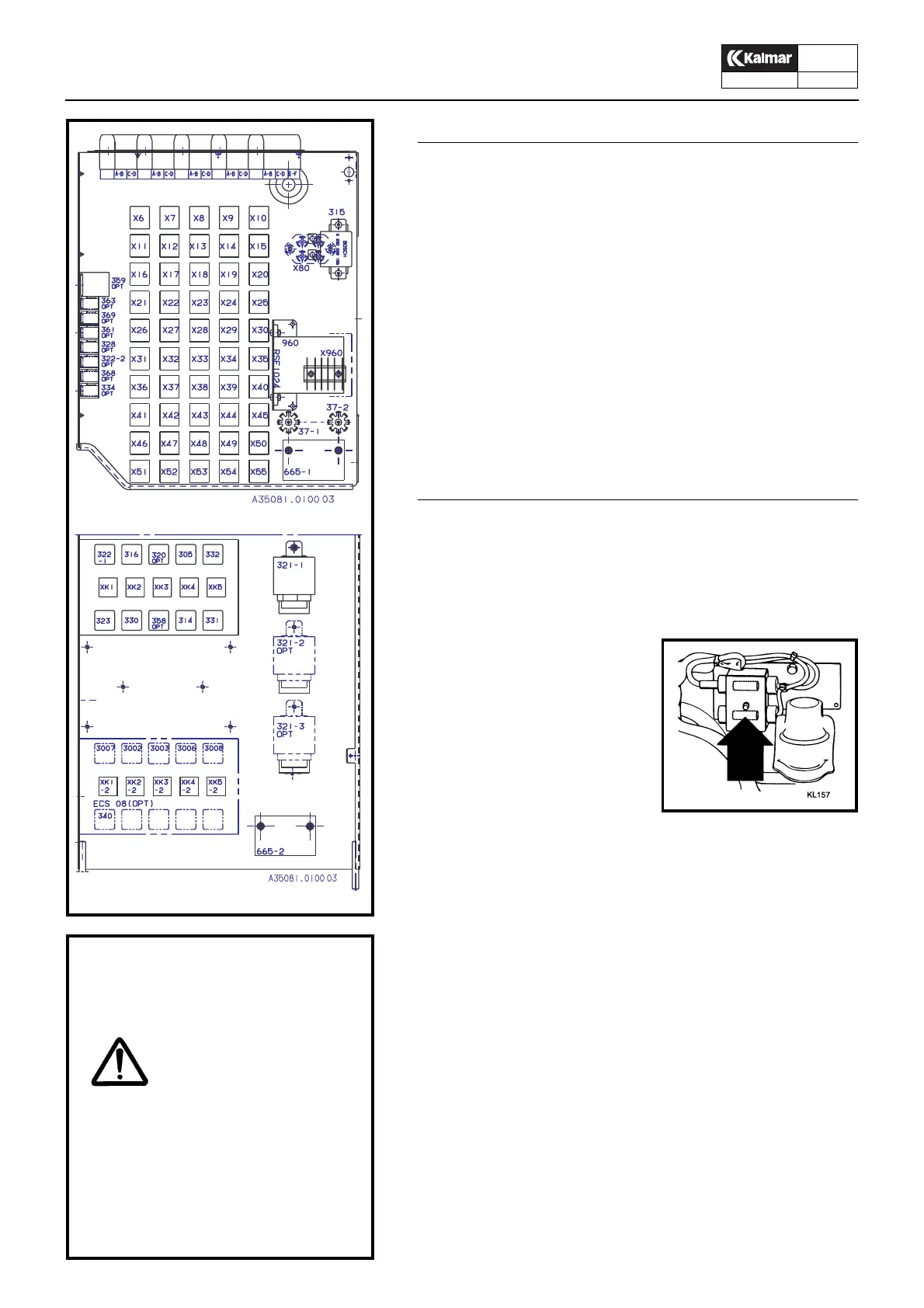

DCE80-100E
Technical Handbook
SUPERVISION
Electrical system
9
P.Group 20
TDCE01
04GB
Relays
305 Reversing light
314 Parking brake, disengagement
315 High power (Starting switch)
316 Wiper motor, front
320 Electric stop (ECS 07)
1)
322-1 Coolant level
322-2 Coolant level (ECS 07)
1)
323 Pulse relay, direction indicators
328 Lever steering (ECS 04)
1)
330 Starting interlock
331 Propulsion forward
332 Propulsion reverse
334 Release clutch at automatic gearbox (ECS 01)
1)
368 Low brake pressure (ECS 07)
1)
399 Spare
Miscellaneous
321-1 Intermittent relay wiper front
321-2 Intermittent relay wiper rear
1)
960 Reversing interlock
1)
Optional equipment
Main fuse
for electrical
system
Fitted on the engine
2 x 50 A
Starting from another battery
z Make sure the auxiliary batteries are connected in series, so
that 24 V will be supplied.
Note: Do not disconnect the truck-battery cables
z Connect the jumper cables in the following order:
1. Red cable (+) to auxiliary battery
2. Red cable (+) to truck battery
3. Black cable (–) to auxiliary battery
4. Black cable (–) to a location some distance away from
the truck battery, such as the negative cable connection on
the chassis.
z Start the engine
Do not disturb the jumper cables while starting, as
sparks may otherwise be caused. Do not lean over ei-
ther battery.
z Disconnect the jumper cables in exactly the reverse order.
A
B
WARNING!
Batteries emit oxyhydrogen which
is an explosive gas. A spark, for
example from incorrectly connected
starting cables, could cause a battery
to explode and result in serious injury
and damage.
